Same model may have multiple batches, images only for reference.

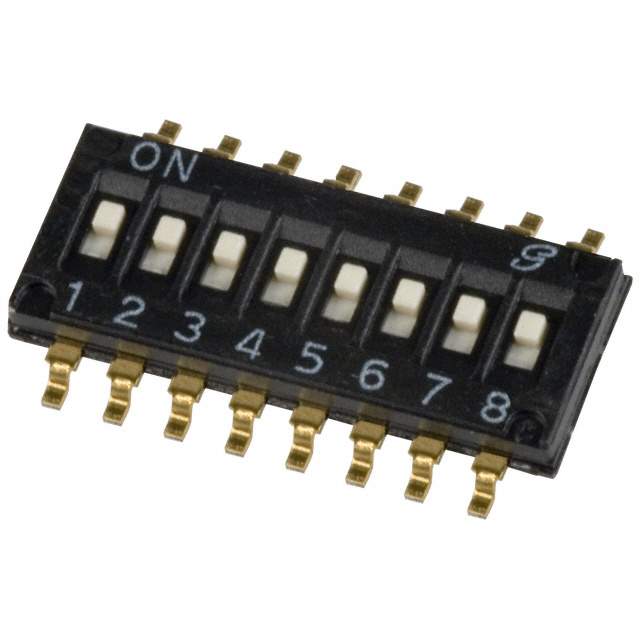

97C08ST Real Image
Same model may have multiple batches, images only for reference.

97C08ST

Part No 97C08ST
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description Half Pitch DIP Switches | SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.063" (1.60mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyamide (PA), Nylon
Length 0.448" (11.39mm)
Mechanical Life 1,000 Cycles
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Win Source Part Number 1134301-97C08ST
Manufacturer Homepage www.grayhill.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 97C08ST CAD Model

Description

The 97C08ST from Grayhill Inc. is a switch device that comes in a tube packaging.

  • Positions: 8
  • Pitch: 0.050" (1.27mm), half
  • Termination Style: gull wing
  • Mounting Style: SMD
  • Features: tape seal, gold contact finish
  • Contact Material: copper alloy
  • Voltage Rating: 24VDC
  • Height Above Board: 0.063" (1.60mm)
  • Body Material: polyamide (PA), nylon
  • Circuit: SPST
  • Actuator Type: slide (standard)
  • Actuator Level: flush, recessed
  • Washable: Yes
  • Supply and Demand Status: limited
  • Popularity: medium
  • Manufacturer Pack: 40
  • MSL Level: 1 (unlimited)
  • Current Rating (amps): 25mA
