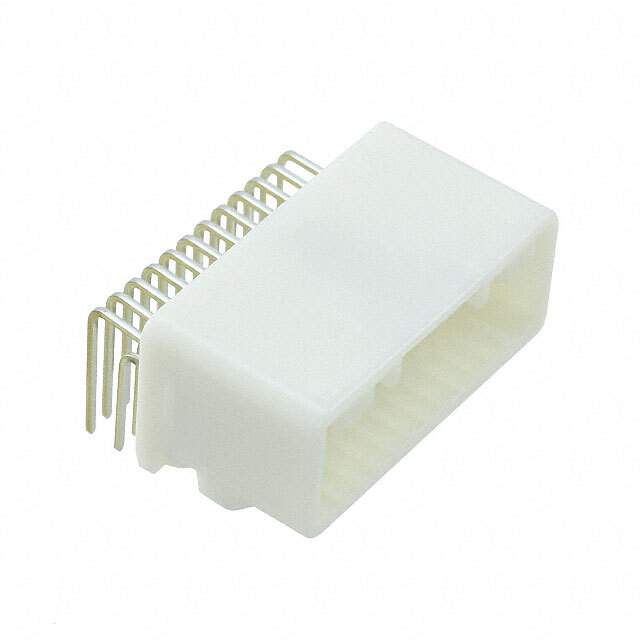

Part No 1318853-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 24POS 2.2MM / Connector Header Through Hole, Right Angle 24 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.217" (5.50mm)
Contact Length - Post 0.157" (4.00mm)
Insulation Height 0.610" (15.49mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 HB
Insulation Color Natural
Voltage Rating 12VDC
Applications Automotive
Base Product Number 1318853
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1318853-2-CSI,A126095,2266-1318853-2,1318853-2-ND,-1318853-2-LSI,-1318853-2-SI
Standard Package 14
Win Source Part Number 996672-1318853-2
Ultra Librarian 3D Model Ultra Librarian 1318853-2 CAD Model

Description

This male pin header connector with 24 positions is designed for automotive applications.

  • Number of Positions: 24
  • Application: Automotive
  • Mounting Features: Mounting Flange
  • Material: Brass
  • Plating: Tin
  • Voltage Rating: 12VDC
  • Mounting Type: Through-Hole, Right Angle
  • Contact Material: Brass
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Shrouding: Shrouded with 4 Walls
  • Row Spacing: 0.118 inches (3.00mm)
  • Contact Length (Mating): 0.217 inches (5.50mm)
  • Contact Length (Post): 0.157 inches (4.00mm)
  • Temperature Range: -30°C to 105°C
  • Material Flammability Rating: UL94 HB
  • Package: 14 connectors
  • Pitch (Mating): 0.087 inches (2.20mm)
