Same model may have multiple batches, images only for reference.

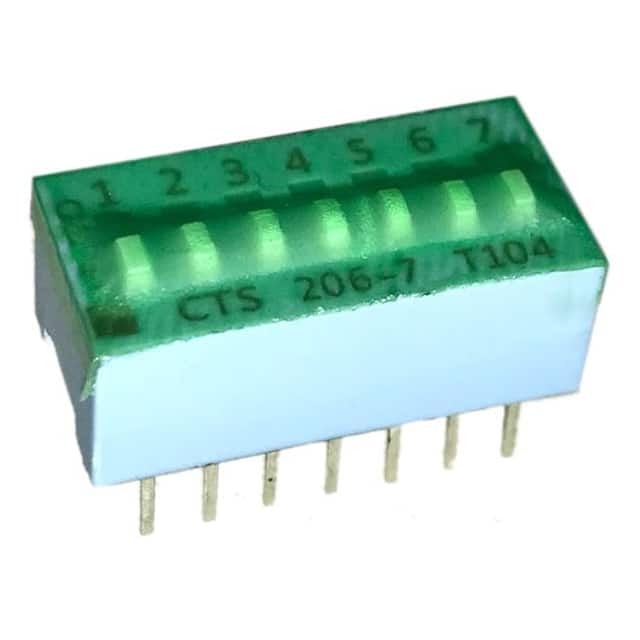

206-7ST CTS Electrocomponents
Same model may have multiple batches, images only for reference.

206-7ST

Part No 206-7ST
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr CTS Electrocomponents
Series 206
Package Tube
Circuit SPST
Number of Positions 7
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.334" (8.48mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 0.786" (19.96mm)
Electrical Life 10,000 Cycles
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1314764-206-7ST
Ultra Librarian 3D Model Ultra Librarian 206-7ST CAD Model

Description

The CTS Electrocomponents DIP switch with Win Source Part Number 1314764-206-7ST is a high-quality and reliable component that can be used in various electronic devices.

  • Positions: 7
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC pin
  • Features: Epoxy-sealed terminals and tape seal
  • Operating Temperature: -55°C to 85°C
  • Voltage Rating: 24VDC
  • Package: Tube
  • Contact Finish: Gold
  • Circuit: SPST
  • Actuator Type: Slide (standard)
