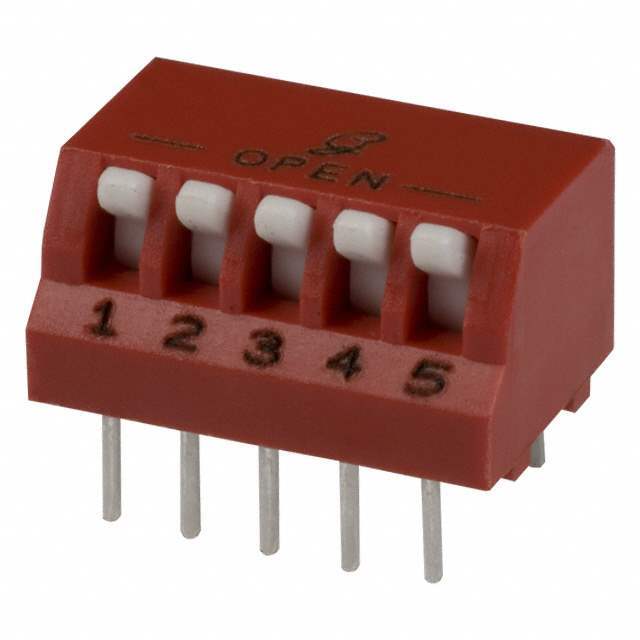

76PSB05T Grayhill Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1203770-76PSB05T
Manufacturer Grayhill Inc.
Category Switches DIP Switches
Series 76
Product Status Active
Circuit SPST
Number of Positions 5
Current Rating (Amps) 150mA
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Ultra Librarian 3D Model Ultra Librarian 76PSB05T CAD Model

Description

Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC
