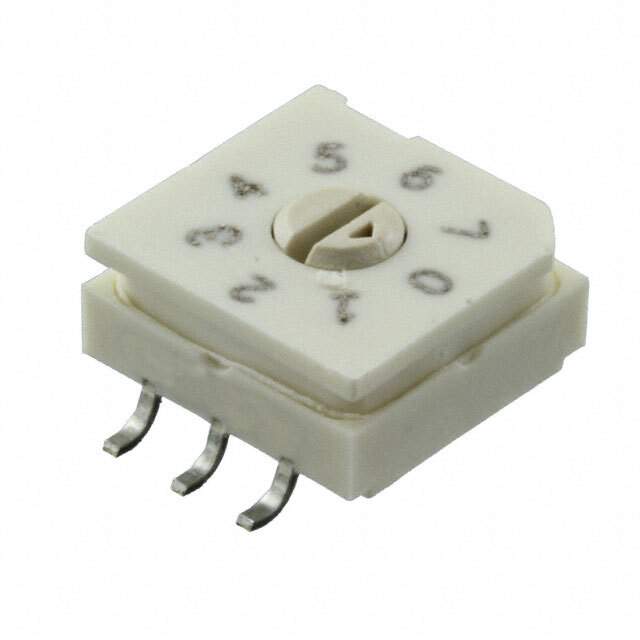

94HAB08WRT Real Image
Same model may have multiple batches, images only for reference.

94HAB08WRT

Part No 94HAB08WRT
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SW ROTARY DIP OCTAL 100MA 50V / Dip Switch Octal 8 Position Surface Mount Rotary for Tool Actuator 100mA 50VDC
Datasheet
94HAB08WRT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Grayhill Inc.
Series 94H
Package Tape & Reel
Circuit Octal
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 50VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.225" (5.72mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Sealed
Temperature Range - Operating -40°C ~ 85°C
Body Material Plastic
Length 0.390" (9.91mm)
Mechanical Life 10,000 Cycles
Base Product Number 94HAB08
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names GH7753TR,94HAB08WRT-ND,2266-94HAB08WRT,GH7753CT,GH7753DKR
Standard Package 750
Win Source Part Number 1207053-94HAB08WRT
Ultra Librarian 3D Model Ultra Librarian 94HAB08WRT CAD Model

Description

The Grayhill Inc. 94H series DIP switch is a high-quality and reliable switch for a range of applications.

  • Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Voltage Rating: 50VDC
  • Current Rating: 100mA
  • ECCN: EAR99
  • Temperature Range: -40°C to 85°C
  • Sealed: Yes
  • Washable: Yes
  • Mechanical Life: 10,000 Cycles
  • Packaging: Tape & Reel
