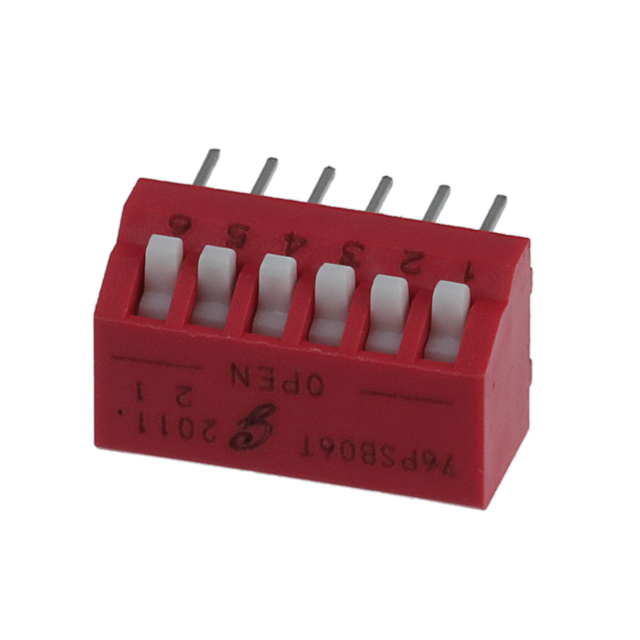

76PSB06T Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 4 Weeks
Features Dip Switch SPST Position Through Hole, Right Angle Piano Actuator 150mA 30VDC
Manufacturer Grayhill Inc.
Series 76
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name 76PSB
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number 2266-76PSB06T, GH7140
Quantity per package 15
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858198-76PSB06T
Ultra Librarian 3D Model Ultra Librarian 76PSB06T CAD Model

Description

The 858198-76PSB06T is a dip switch with SPST position and a right angle piano actuator from Grayhill Inc.

  • Switch Type: DIP Switch
  • Positions: SPST
  • Actuator: Right Angle Piano
  • Current Rating: 150mA @ 30VDC
  • Packaging: Tube
  • Mounting: Through-Hole Right Angle
  • Family: 76PSB
  • Mounting Technology: Through-Hole
  • Units Per Package: 15
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.50.9065
  • ECCN: EAR99
  • REACH: Unaffected
