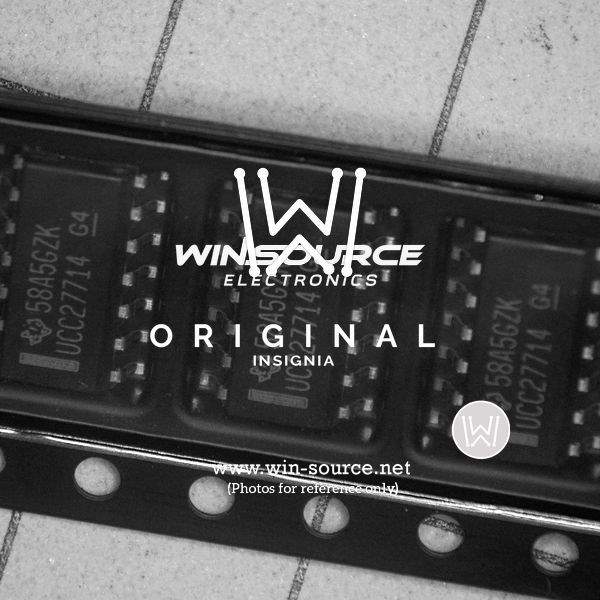

Texas Instruments UCC27714DR High-Speed, High-Side and Low-Side Gate Driver

The UCC27714DR by Texas Instruments is a high-performance, high-speed gate driver designed to drive both the high-side and low-side N-Channel MOSFETs or IGBTs in a synchronous buck, boost, or half-bridge configuration. This integrated circuit is well-suited for a variety of power applications, including switch-mode power supplies, motor drives, and DC-AC inverters for renewable energy systems.

Featuring a robust output drive capability of 4 A source and 4 A sink current, the UCC27714DR ensures efficient switching performance for power conversion devices. It is designed to work with supply voltages ranging from 10 V to 18 V, providing flexibility in various design scenarios. The device's fast propagation delays of 16 ns typical with 4 ns maximum delay matching between channels, enable high-frequency operation and help reduce dead-time, thus improving overall system efficiency.

The UCC27714DR incorporates advanced features such as a 3-V undervoltage lockout (UVLO) for VCC, which ensures the gate driver operates at an adequate supply voltage, thus protecting power devices from insufficient gate drive voltage. Moreover, it includes an interlocking function that prevents both outputs from being high simultaneously, reducing the risk of shoot-through in the power stage.

Designed to withstand harsh environments, the UCC27714DR offers an extended temperature range of -40°C to 125°C and comes in an 8-pin SOIC package that is compact and suitable for space-constrained applications. The device also has a robust 4-kV ESD rating, which adds an extra layer of protection against electrostatic discharge events.

With its combination of high-speed operation, robust drive strength, and advanced protection features, the Texas Instruments UCC27714DR is an excellent choice for designers looking to improve the performance and reliability of their power systems.
