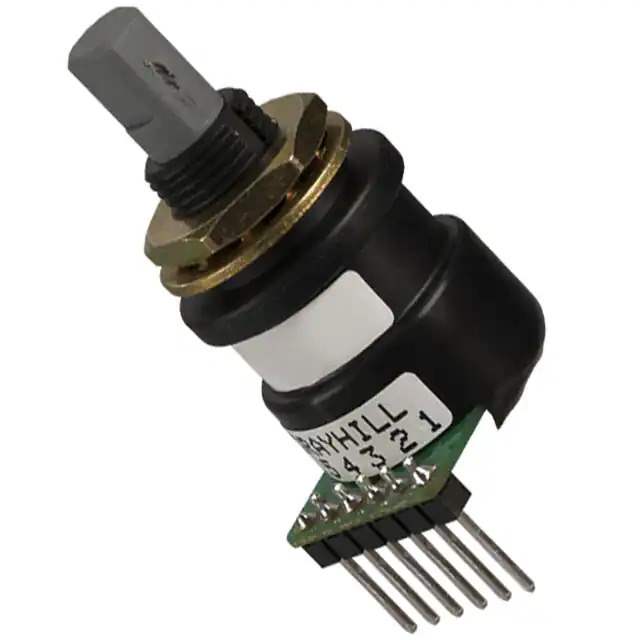

61C22-01-04-02 Real Image
Same model may have multiple batches, images only for reference.

61C22-01-04-02

Part No 61C22-01-04-02
Manufacturer Grayhill Inc.
Catalog Encoders
Description ROTARY ENCODER OPTICAL 16PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Grayhill Inc.
Series 61C
Package Bulk
Product Status Active
Programmable Not Verified
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 16
Voltage - Supply 5V
Actuator Type 1/4" Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 1M
Base Product Number 61C22
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 846915-61C22-01-04-02
Ultra Librarian 3D Model Ultra Librarian 61C22-01-04-02 CAD Model

Description

The 846915-61C22-01-04-02 is an encoder with quadrature output type and 16 pulses per revolution.

  • Output Type: Quadrature
  • Pulses per Revolution: 16
  • Features: Built-in Switch, Detent
  • Voltage Supply: 5V
  • Mounting Type: Panel or PCB Through-Hole
  • Rotational Life: 1 Million Cycles (Minimum)
  • Package: PC Pin
  • Manufacturer: Grayhill Inc.
  • Series: 61C
  • Product Status: Active
