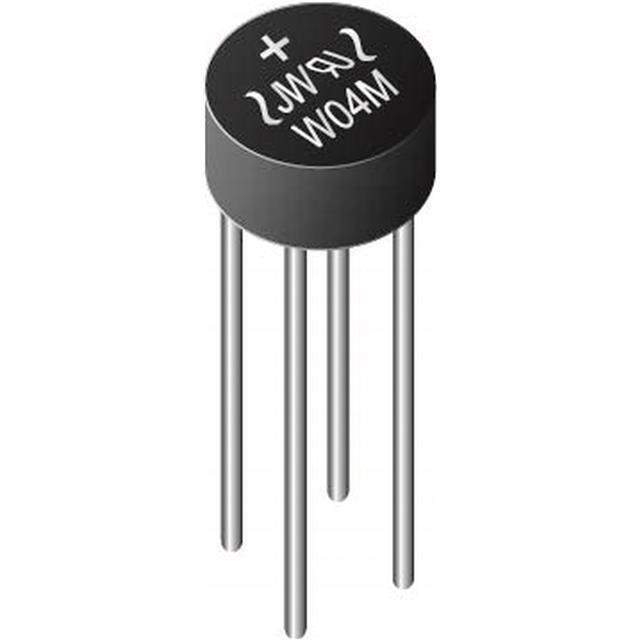

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 50V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Maximum) at If 1V at 1A
Current - Reverse Leakage at Vr 10μA at 50V
Temperature Range - Operating -65°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package 4-Circular, WOM
Supplier Device Package WOM
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1279949-W005M
Manufacturer Homepage www.wontop.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian W005M CAD Model

Description

The GeneSiC Semiconductor 1279949-W005M is a single-phase standard diode with a peak reverse voltage of 50V and an average rectified current of 1.5A.

  • Peak Reverse Voltage: 50V
  • Average Rectified Current: 1.5A
  • Mounting Style: Through-Hole
  • Product Status: Obsolete
  • Temperature Range: -65°C to 125°C
  • Forward Voltage: 1V @ 1A
  • Device Package: 4-circular, WOM
  • Current Reverse Leakage @ Vr: 10μA @ 50V
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Supply and Demand Status: Limited
