Same model may have multiple batches, images only for reference.

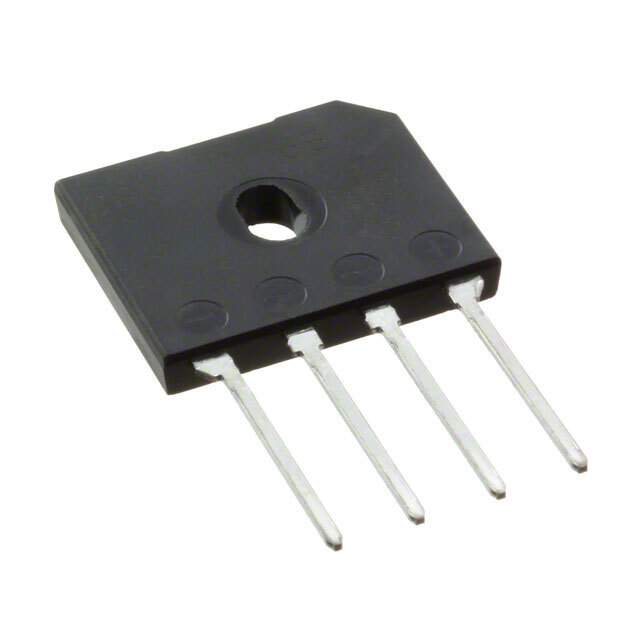

GBU8J Real Image
Same model may have multiple batches, images only for reference.

GBU8J

Part No GBU8J
Manufacturer GeneSiC Semiconductor
Catalog Bridge Rectifiers
Description GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER(VOLTAGE 50 to 800 Volts CURRENT - 8.0 Amperes) | BRIDGE RECT 1PHASE 600V 8A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 8A
Current - Reverse Leakage at Vr 5μA at 600V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBU
Supplier Device Package GBU
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1177045-GBU8J
Manufacturer Homepage www.panjit.com.tw
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian GBU8J CAD Model

Description

The GeneSiC Semiconductor 1177045-GBU8J is a single-phase standard diode with a current rating of 8A and a maximum forward voltage of 1.1V at 8A.

  • Manufacturer: GeneSiC Semiconductor
  • Component: 1177045-GBU8J
  • Diode Type: Single-phase standard
  • Current Rating: 8A
  • Maximum Forward Voltage: 1.1V @ 8A
  • Peak Reverse Voltage: 600V
  • Reverse Leakage Current: 5μA @ 600V
  • Mounting Type: Through-hole
  • Package: 4-SIP, GBU
  • Operating Temperature Range: -55°C to 150°C
  • Supply and Demand: Balanced
  • Package Quantity: 500
