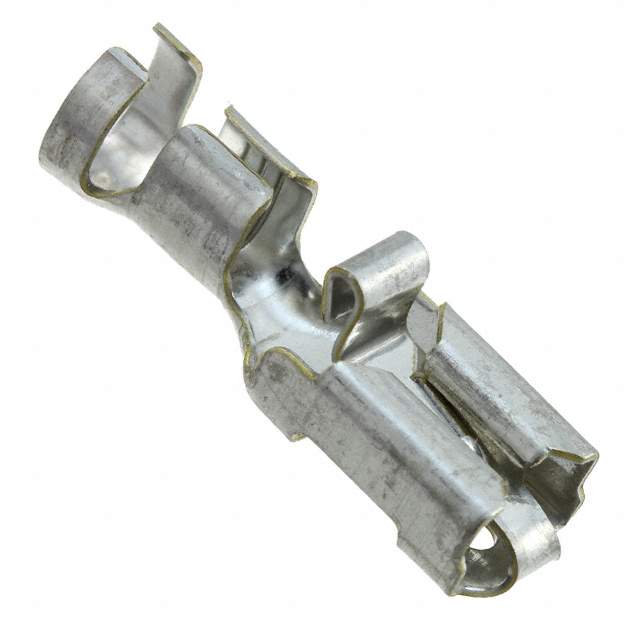

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.894" (22.70mm)
Termination Crimp
Wire Gauge 10-11.5 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.134" ~ 0.201" (3.40mm ~ 5.10mm)
Base Product Number 737015
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 737015-3-ND,-737015-3-LSI,A114375,-737015-3-SI
Standard Package 500
Win Source Part Number 1333502-737015-3
Ultra Librarian 3D Model Ultra Librarian 737015-3 CAD Model

Description

The 1333502-737015-3 is a female quick disconnect connector manufactured by TE Connectivity AMP Connectors.

  • Type: Non-Insulated
  • Termination: Crimp
  • Wire Gauge: 10-11.5 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Overall Length: 0.894" (22.70mm)
  • Current Rating: 75A
  • Ideal for: Use in applications such as power supplies, motors, and lighting.
