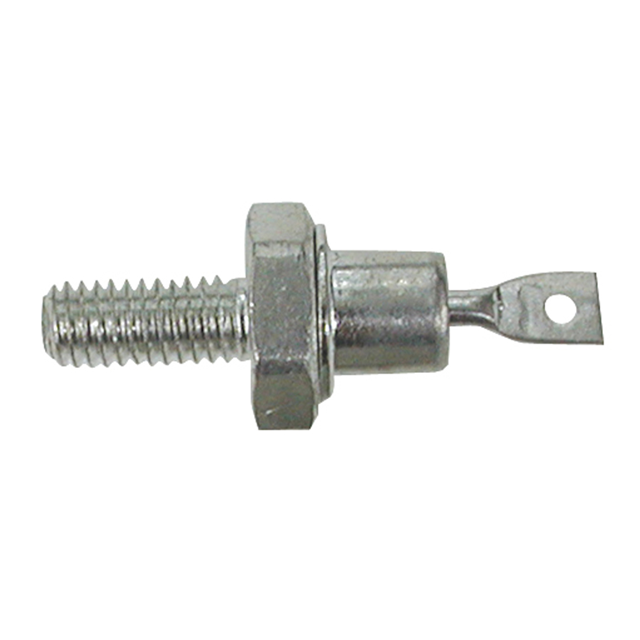

1N3893 Real Image
Same model may have multiple batches, images only for reference.

1N3893

Part No 1N3893
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Description Fast Recovery Rectifier | DIODE GEN PURP 600V 12A DO4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Maximum) at If 1.4V at 12A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 200ns
Current - Reverse Leakage at Vr 25μA at 50V
Mounting Style Chassis, Stud Mount
Manufacturer Package DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -65°C ~ 150°C
Family Part Number 1N3893
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Win Source Part Number 1121688-1N3893
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1N3893 CAD Model

Description

The GeneSiC Semiconductor 1121688-1N3893 is a standard diode with a peak reverse voltage of 600V and an average rectified current of 12A.

  • Package: Packaged in a chassis, stud mount style
  • Recovery Speed: Fast recovery speed of 200mA (Io)
  • Temperature Range: -65°C to 150°C
  • Forward Voltage: 1.4V @ 12A
  • Device Package: DO-4
  • Current Reverse Leakage @ Vr: 25μA @ 50V
  • Manufacturer Pack Quantity: 250
  • MSL Level: 1 (Unlimited)
  • Supply and Demand Status: Limited
  • Family Part Number: 1N3893
