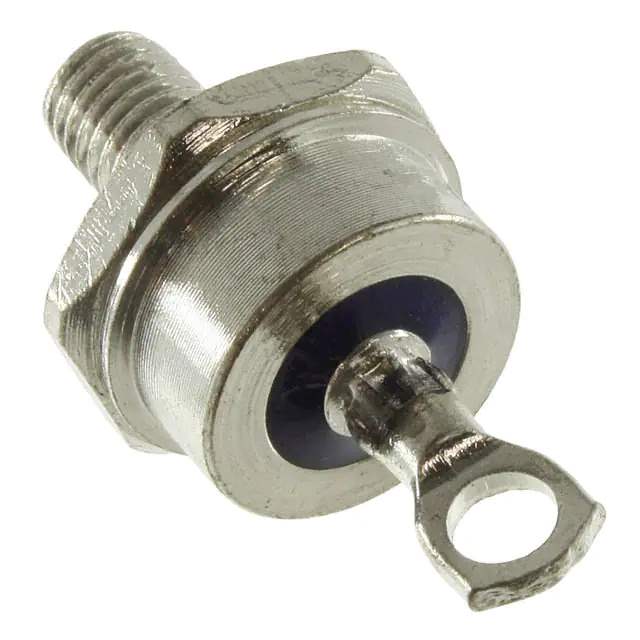

1N3768 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr GeneSiC Semiconductor
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 35 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 50 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-5
Operating Temperature - Junction -65°C ~ 190°C
Base Product Number 1N3768
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 538993-1N3768
Ultra Librarian 3D Model Ultra Librarian 1N3768 CAD Model

Description

The 538993-1N3768 is a standard recovery rectifier diode designed for use in discrete semiconductor products.

  • Maximum DC Reverse Voltage: 1000V
  • Average Rectified Current: 35A
  • Forward Voltage: 1.2V @ 35A
  • Reverse Leakage Current: 10 µA @ 50V
  • Operating Temperature: -65°C to 190°C
  • Mounting Type: Chassis or Stud
  • Package: DO-203AB, DO-5, Stud
  • Supplier Device Package: DO-5
  • Manufacturer: GeneSiC Semiconductor
  • Status: Active
