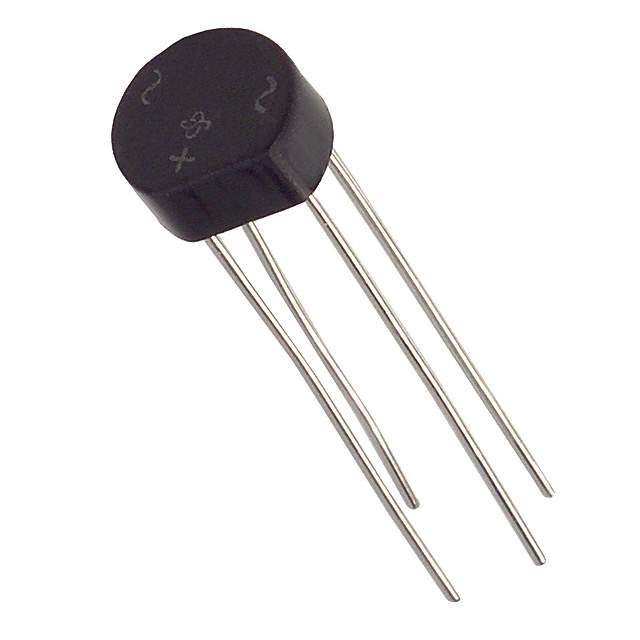

B250C1000G

Part No B250C1000G
Manufacturer General Semiconductor
Catalog Bridge Rectifiers
Description GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

RoHS State Request Verification
Manufacturer General Semiconductor
Win Source Part Number 1150601-B250C1000G
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B250C1000G CAD Model

Description

The B250C1000G is a single-phase bridge rectifier manufactured by General Semiconductor. This component efficiently converts alternating current (AC) into direct current (DC), making it a crucial part of numerous electronic devices and power supplies. It is designed for through-hole mounting, offering a robust and reliable solution for power rectification.

Applications

  • Power supplies for consumer electronics
  • Battery chargers
  • LED lighting systems
  • Industrial automation equipment
  • Home appliances

Features

  • High surge current capability
  • High forward current capability
  • Low forward voltage drop
  • Ideal for printed circuit board mounting
  • High reliability

Benefits

  • Efficient AC to DC conversion
  • Stable and reliable performance
  • Cost-effective solution for power rectification
  • Easy to integrate into various circuit designs
  • Enhanced system reliability due to its robust construction

Technical Specifications

The B250C1000G features a maximum repetitive peak reverse voltage of 200V and a maximum RMS voltage of 140V. It has a maximum DC blocking voltage of 200V and a maximum average forward rectified current of 2.5A at a specific ambient temperature. The peak forward surge current can reach up to 50A. The operating junction temperature ranges from -55°C to +150°C, ensuring stable operation in various environments. The forward voltage drop is typically around 1V at a forward current of 1.25A. The reverse current is minimal, contributing to energy efficiency. The component is encapsulated in a compact package suitable for dense PCB layouts.
