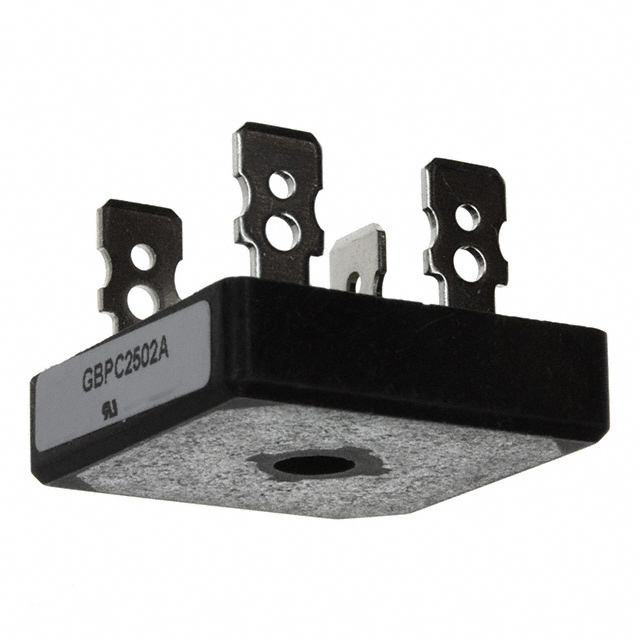

VS-GBPC2502A Vishay
Same model may have multiple batches, images only for reference.

VS-GBPC2502A

Part No VS-GBPC2502A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECT BRIDGE 1-PH 200V 25A GBPC-A / Diode Rectifier Bridge Single 200V 25A 4-Pin Case GBPC-A
Datasheet
VS-GBPC2502A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tray
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 25A
Current - Reverse Leakage @ Vr 2mA @ 200V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, GBPC-A
Manufacturer Package GBPC-A
Win Source Part Number 774997-VS-GBPC2502A
Popularity Medium
Supply and Demand Status Limited
Family Name VS-GBPC2502A
ECCN EAR99
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian VS-GBPC2502A CAD Model

Description

The Vishay Semiconductor Diodes Division 774997-VS-GBPC2502A is a medium-popularity electronic component from Vishay Semiconductor Diodes Division.

  • Package: 4-Square, GBPC-A
  • Diode Type: Single-phase standard
  • Current Average Rectified: 25A
  • Current Reverse Leakage @ Vr: 2mA @ 200V
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Voltage Peak Reverse (maximum): 200V
  • Applications: Discrete semiconductor products
