Same model may have multiple batches, images only for reference.

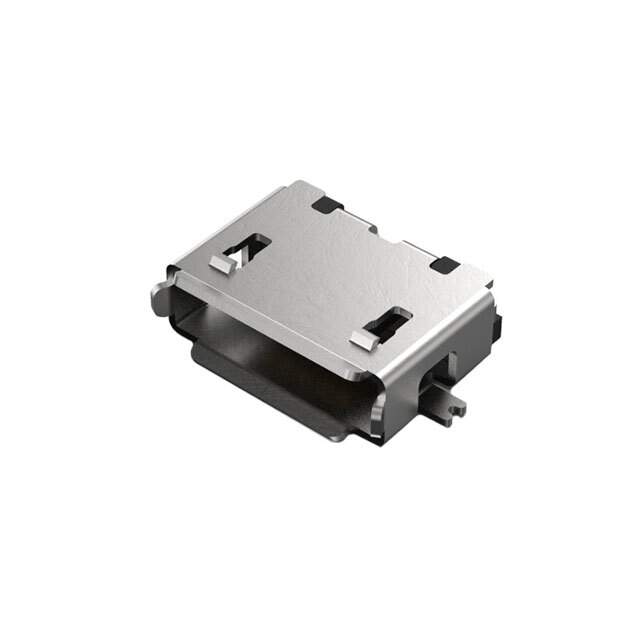

USB3085-30-A

Name: USB3085-30-A
Brand: GCT
SKU: 1339642
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	USB3085-30-A
Manufacturer	GCT
Catalog	USB, DVI, HDMI Connectors
Description	MICRO A/B SKT, BOTTOM-SMT, R/A, / USB - micro AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	GCT
Series	USB3085
Package	Tape & Reel
Connector Type	USB - micro AB
Number of Contacts	5
Gender	Receptacle
Specifications	USB 2.0
Mounting Type	Surface Mount, Right Angle
Mounting Feature	Bottom Mount, Horizontal
Termination	Solder
Features	Solder Retention
Temperature Range - Operating	-30°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	1A, 1.8A
Voltage - Rated	30VAC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless (SUS)
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	USB3085
Standard Package	1,500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339642-USB3085-30-A
Ultra Librarian 3D Model	Ultra Librarian USB3085-30-A CAD Model

Description

The USB3085 series micro AB USB connector from GCT is a high-quality and reliable solution for your USB connector needs.

Manufacturer: GCT
Series: USB3085
Contacts: 5
Shielded: Yes
Termination: Solder
Mounting Feature: Bottom Mount, Horizontal
USB Specification: USB 2.0
Rated Voltage: 30VAC
Contact Finish: Gold
Package: Tape and Reel
Mating Cycle: 10,000
Current Rating: 1A and 1.8A
Insulation Color: Black
Shell/Shielding Material: Steel and Stainless (SUS)
Operating Temperature: -30°C to 85°C
