Same model may have multiple batches, images only for reference.

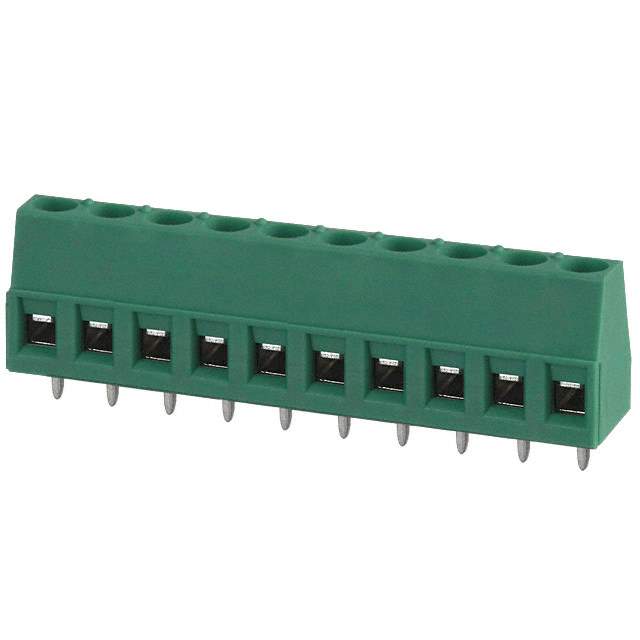

1715802 Real Image
Same model may have multiple batches, images only for reference.

1715802

Part No 1715802
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 10P SIDE ENT 5.08MM PCB / 10 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr Phoenix Contact
Series COMBICON MKDS
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 10
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 15 A
Voltage 300 V
Wire Gauge 14-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA), Nylon
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Screw Thread M3
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905469-1715802
Ultra Librarian 3D Model Ultra Librarian 1715802 CAD Model

Description

The COMBICON MKDS series by Phoenix Contact offers a reliable solution for wire-to-board connections in electronic applications. With a pitch of 0.200" (5.08mm), this terminal block is designed to accommodate wire gauges ranging from 14 to 30 AWG.

  • Series: COMBICON MKDS
  • Connector Type: Terminal Block, Wire-to-Board
  • Pitch: 0.200" (5.08mm)
  • Wire Gauge: 14 to 30 AWG
  • Housing Material: Polyamide (PA) Nylon
  • Features: Interlocking
  • Voltage Rating: 300 V
  • Current Rating: 15 A
  • Wire Termination: Screw
  • Termination Type: Rising Cage Clamp
  • Package Type: Bulk
  • Package Quantity: 50 pcs
  • Color: Green
  • Manufacturer: Phoenix Contact
