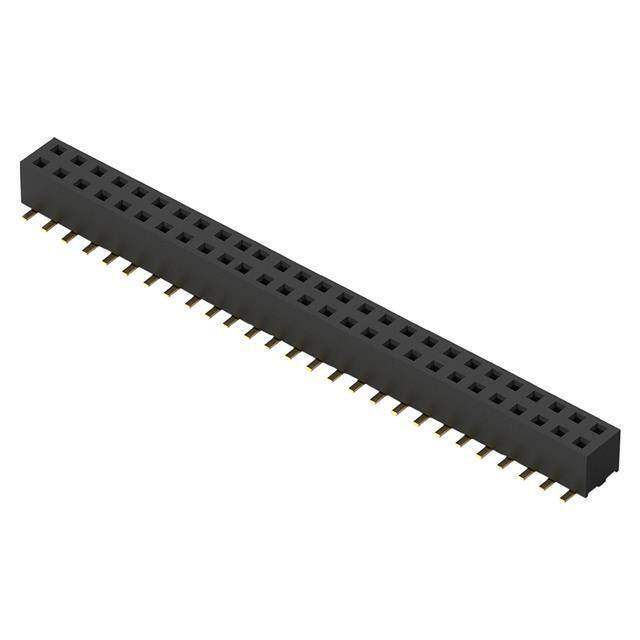

Same model may have multiple batches, images only for reference.

BF100-54-A-C-0-0625-N-D

Name: BF100-54-A-C-0-0625-N-D
Brand: GCT
SKU: 913293
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	BF100-54-A-C-0-0625-N-D
Manufacturer	GCT
Catalog	Rectangular Connectors
Description	54W, 2MM PITCH SOCKET, DIL, SMT,
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	GCT
Series	BF100
Package	Tube
Product Status	Active
Connector Type	Receptacle, Bottom or Top Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	54
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.169" (4.30mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Pick and Place
Current Rating (Amps)	2A per Contact
Voltage Rating	250VAC/DC
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	913293-BF100-54-A-C-0-0625-N-D
Ultra Librarian 3D Model	Ultra Librarian BF100-54-A-C-0-0625-N-D CAD Model

Description

The BF100 series connectors are rectangular connectors used for various applications.

Series: BF100
Connector Type: Receptacle, Bottom or Top Entry
Positions: 54
Rows: 2
Termination: Solder
Contacts: Phosphor Bronze
Insulation Material: Black Polyamide
Voltage Rating: 250VAC/DC
Current Rating: 2A per contact
Mounting: Surface Mount
Package: Tube
Connection Type: Board-to-Board
