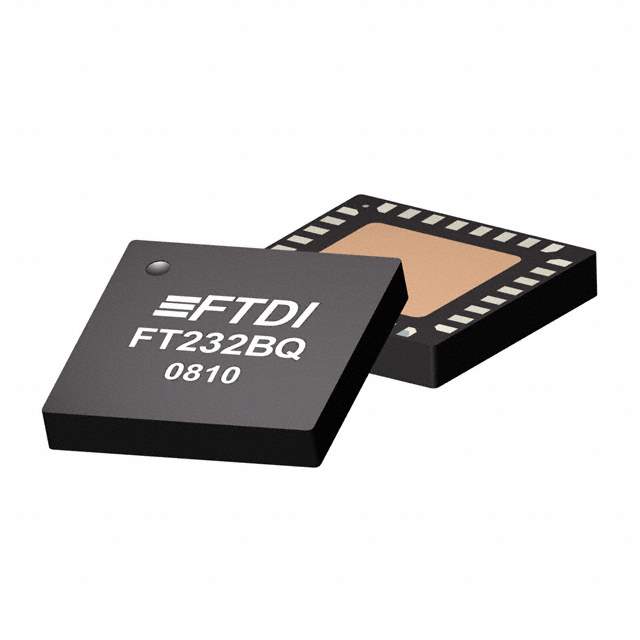

The FT232BQ is a USB to UART (Universal Asynchronous Receiver/Transmitter) interface converter manufactured by Future Technology Devices International Ltd. (FTDI). This integrated circuit is designed to facilitate communication between devices that use a USB interface and devices that use a UART interface, enabling seamless data transfer and control.

Applications:

• USB to Serial Adapters: Used in USB to serial adapters, allowing legacy devices with serial ports to connect to modern computers with USB ports.
• Embedded Systems Programming: Employed as a bridge between a computer and an embedded system for programming and debugging.
• Data Logging: Used in data logging applications to transfer data from sensors or other devices to a computer via USB.
• Industrial Control: Integrated into industrial control systems to enable communication between a computer and industrial equipment.
• Medical Devices: Used in medical devices for data transfer and control, facilitating communication with diagnostic and monitoring equipment.

Features:

• USB to UART Conversion: Converts USB signals to UART signals and vice versa.
• Integrated USB Transceiver: Includes a built-in USB transceiver, simplifying the design.
• Supports Various Baud Rates: Supports a wide range of baud rates for flexible communication.
• FIFO Buffers: Features FIFO (First-In, First-Out) buffers for improved data throughput.
• Driver Support: Offers comprehensive driver support for various operating systems.
• Low Power Consumption: Designed for low power consumption, making it suitable for battery-powered devices.

Benefits:

• Simplified USB Integration: Simplifies the integration of USB connectivity into existing systems.
• Easy Programming and Debugging: Facilitates easy programming and debugging of embedded systems.
• Reliable Data Transfer: Provides reliable data transfer between USB and UART devices.
• Wide Compatibility: Compatible with various operating systems and baud rates, offering flexibility in different applications.
• Reduced Development Time: Reduces development time by providing a ready-to-use USB to UART interface.

Additional Details:

The FT232BQ typically comes in a QFN (Quad Flat No-leads) or SSOP (Shrink Small Outline Package). Key specifications include USB compliance (e.g., USB 2.0 full speed), UART data rates (e.g., 300 baud to 3 Mbps), and supply voltage (e.g., 3.3V or 5V). It also includes features such as configurable I/O pins, EEPROM for storing configuration data, and support for various communication protocols. Comprehensive documentation and drivers are available from FTDI.
