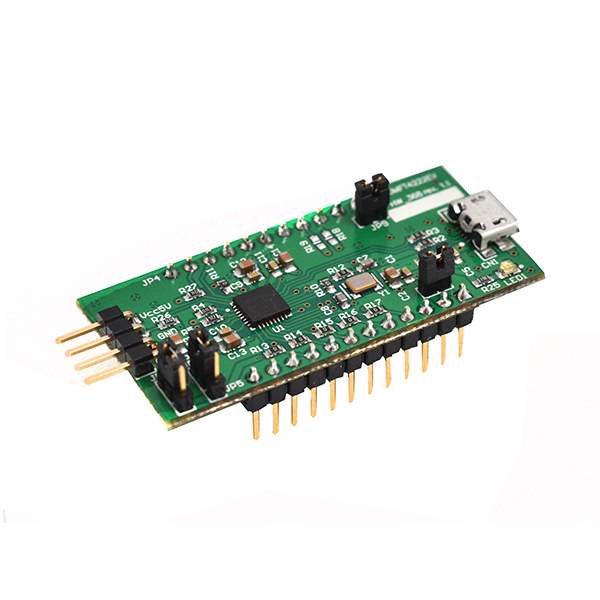

The UMFT4222EV-D is a development module designed by FTDI, Future Technology Devices International Ltd, aimed at providing an efficient and flexible platform for engineers and hobbyists alike to explore the capabilities of the FT4222H, a Hi-Speed USB2.0 to Quad SPI/I2C device. This module serves as a hardware interface converter, allowing USB connectivity in systems that originally communicate via SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit) protocols.

Key Features

• USB 2.0 Hi-Speed Compatible: The module supports full-speed USB data transfer rates, making it ideal for high-performance applications.
• Multi-Protocol Synchronous Serial Engine (MPSSE): The MPSSE allows for emulation of JTAG, SPI, I2C, and other synchronous serial protocols, providing versatility in communication.
• Integrated Clock Circuit: The UMFT4222EV-D comes with an integrated clock-generator, which eliminates the need for external clocking hardware and simplifies the design.
• Power Configuration: The module can be powered through the USB bus or via an external power supply, depending on the user's requirements.
• GPIO Interface: It provides a General Purpose I/O (GPIO) interface for additional hardware interfacing and control.

Applications

The UMFT4222EV-D module is versatile in its applications, suitable for use in developing USB interfaces for a variety of SPI and I2C devices, such as sensors, memory, and other peripherals. It is also ideal for prototyping and testing new designs, or for integrating USB connectivity into existing systems that lack native support.

Design and Development Support

FTDI provides comprehensive support for the UMFT4222EV-D with a full suite of software tools, including drivers and libraries, to facilitate rapid development and integration. The module is also accompanied by extensive documentation and application notes to assist developers in fully utilizing its capabilities.

Conclusion

With its high-speed USB interface, multi-protocol synchronous serial engine, and flexible power options, the UMFT4222EV-D from FTDI is a powerful module for any developer looking to bridge USB with SPI or I2C protocols. Its ease of use and strong support make it a valuable tool for both rapid prototyping and production-grade applications.
