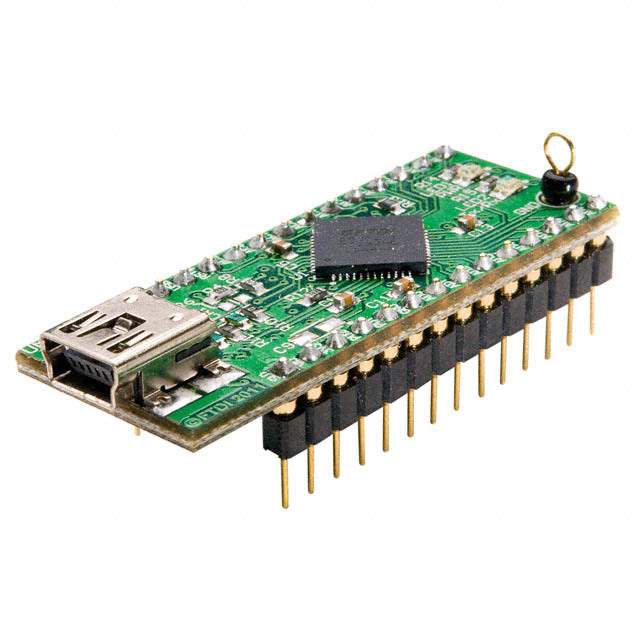

FTDI UM232H Single Channel USB Hi-Speed FT232H Development Module

The UM232H module, brought to you by Future Technology Devices International Ltd (FTDI), is a versatile and compact USB-to-serial/FIFO development module in the FTDI product range. This module is designed around the high-performance FT232H chip, which is a single-channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC. It serves as a quick and easy solution for implementing a USB interface to serial UARTs, FIFO or other types of interfaces with minimal design effort.

The UM232H is perfect for bridging legacy peripherals to USB, offering a simple pathway for data communication and file transfer. With its high data transfer rates, this module is ideal for applications in various fields, including industrial control, instrumentation, and telecommunications.

Key Features:

• Integrated FT232H chip handles all the USB signaling and protocols.
• Provides a USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO interface.
• Supports a variety of interface options: UART, FIFO, I2C, SPI, and JTAG.
• On-board EEPROM for I/O configuration and USB ID storage.
• USB-powered, with an option for external power supply if required.
• Compact module with a 2.54mm pitch, suitable for breadboarding and prototyping.
• Comprehensive set of drivers available for Windows, Mac, and Linux platforms.
• LEDs for visual indication of traffic and power status.

With its flexible interface options, the UM232H can be used for a wide range of applications. The module's DIP module packaging makes it breadboard-friendly and suitable for prototyping work. FTDI's royalty-free VCP and D2XX drivers offer further ease of integration, ensuring that the UM232H can be seamlessly integrated into existing systems as well as new designs.

Whether you are working on rapid prototyping or developing a full-scale USB solution, the UM232H from FTDI provides a reliable and efficient bridge between your software and hardware interfaces.
