FT2232H-56Q-REEL - FTDI, Future Technology Devices International Ltd

The FT2232H-56Q-REEL is a versatile, high-quality USB to serial/FIFO (First In, First Out) interface converter module from FTDI, Future Technology Devices International Ltd. This innovative product offers a wide array of functionalities, making it an excellent choice for applications requiring USB connectivity with multiple interface options.

At the heart of the FT2232H-56Q-REEL is FTDI's flagship dual-channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC. This allows the module to operate as two independent serial ports simultaneously or as a FIFO interface with data transfer speeds up to 40 Mbytes/sec. The device supports a variety of configurations, including UART, FIFO, JTAG, SPI, I²C, and bit-bang modes, providing flexibility for a broad range of design requirements.

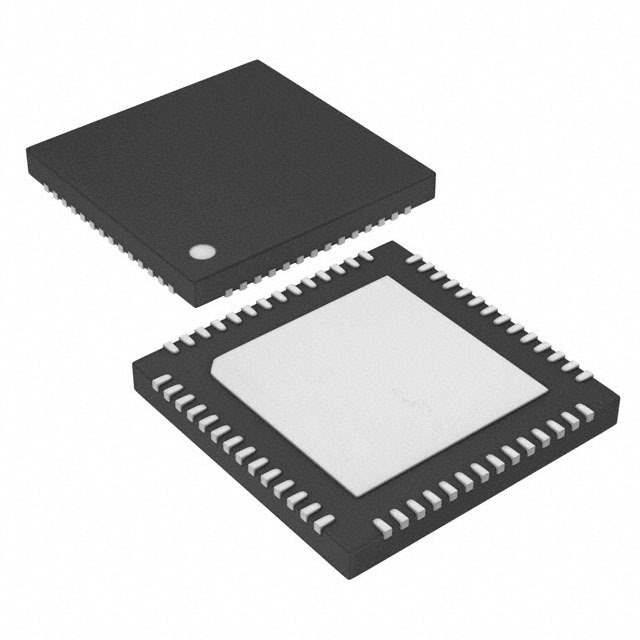

The module is housed in a compact 56-pin QFN package and is supplied on a reel, making it suitable for automated assembly processes, and ideal for volume production. The FT2232H-56Q-REEL is designed for ease of implementation, with integrated USB resistors and an oscillator, requiring minimal external components for operation.

Key features of the FT2232H-56Q-REEL include:

• Two independent USB to serial/FIFO channels
• Adjustable receive and transmit buffer timeout
• Synchronous and asynchronous bit-bang mode interface options with RD# and WR# strobes
• Integrated 1024-bit internal EEPROM for I/O configuration and storing device descriptors
• Support for USB suspend/resume through SLEEP# and RI# pins
• Configurable I/O drive strength (4, 8, 12 or 16mA)
• Low USB bandwidth consumption
• UHCI/OHCI/EHCI host controller compatible

The FT2232H-56Q-REEL is perfect for a multitude of applications, including industrial control systems, USB instrumentation, USB to RS232/RS422/RS485 converters, and interface bridging for various PC software applications. With its robust design and high-speed capabilities, the FT2232H-56Q-REEL is a reliable and efficient solution for any project requiring USB connectivity with multiple interface options.
