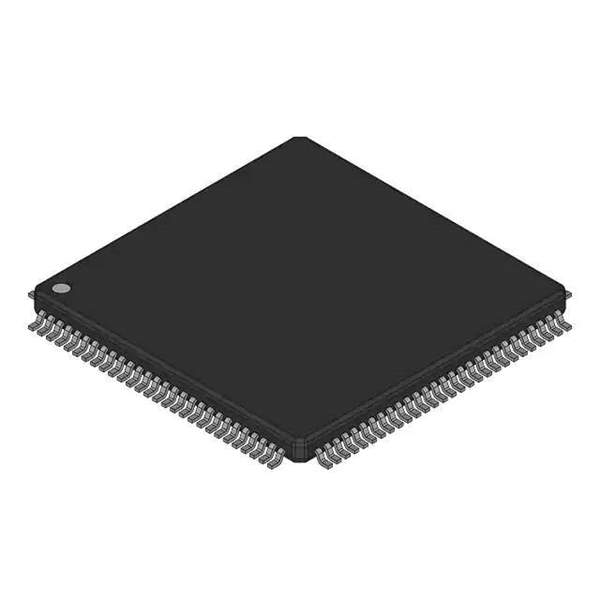

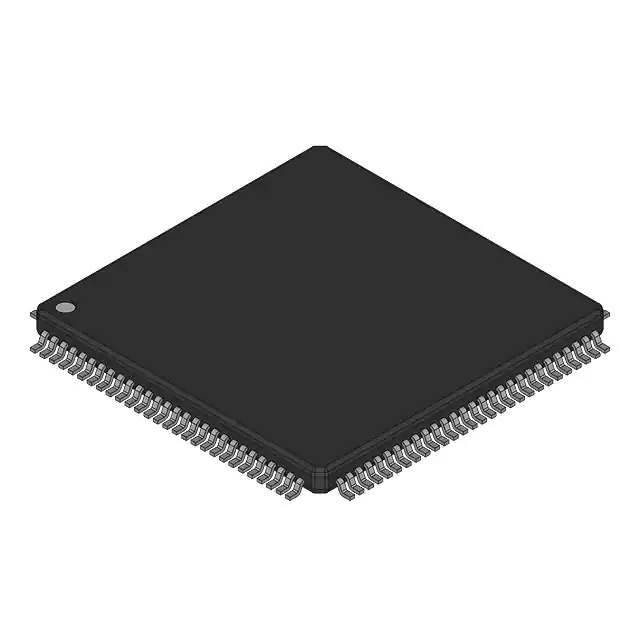

S9S12HZ256J3CAL Real Image
Same model may have multiple batches, images only for reference.

S9S12HZ256J3CAL

Part No S9S12HZ256J3CAL
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description MICROCONTROLLER, 16 BIT, HCS12 C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor - NXP
Series HCS12
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor S12
Core Size 16-Bit
Speed 50MHz
Connectivity CANbus, EBI/EMI, I2C, SCI, SPI
Peripherals LCD, Motor control PWM, POR, PWM, WDT
Number of I/O 85
Program Memory Size 256B (256 x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
RAM Size 12K x 8
Voltage - Supply (Vcc/Vdd) 2.75V ~ 4.5V
Data Converters A/D 16x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 112-LQFP
Supplier Device Package 112-LQFP (20x20)
Base Product Number S9S12
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 932949-S9S12HZ256J3CAL
Ultra Librarian 3D Model Ultra Librarian S9S12HZ256J3CAL CAD Model

Description

The S9S12HZ256J3CAL is an embedded microcontroller from the HCS12 series. It features a 16-bit S12 core processor, operating @ a speed of 50MHz.

  • Series: HCS12
  • Core Processor: S12
  • Speed: 50MHz
  • Program Memory: 256 bytes
  • EEPROM: 2KB
  • Connectivity Options: CANbus, EBI/EMI, I2C, SCI, SPI
  • Peripherals: LCD, motor control PWM, POR, PWM, WDT
  • I/O Pins: 85
  • Package: 112-LQFP
  • Mounting: surface mount
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Freescale Semiconductor - NXP
  • Product Status: active
