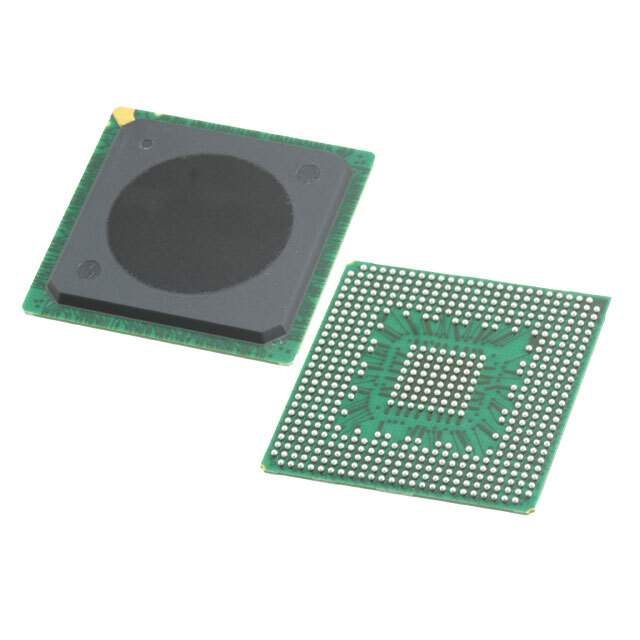

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor PowerPC G2_LE
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 400MHz
Co-Processors/DSP Communications; RISC CPM, Security; SEC
RAM Controllers DRAM, SDRAM
Graphics Acceleration No
Ethernet 10/100 Mbps (2)
USB USB 2.0 (1)
Voltage - I/O 3.3V
Temperature Range - Operating 0°C to 105°C (TA)
Security Features Cryptography, Random Number Generator
Case / Package 516-FPBGA (27x27)
Additional Interfaces I2C, SCC, SMC, SPI, UART, USART
Win Source Part Number 124617-MPC8248VRTMFA
Ultra Librarian 3D Model Ultra Librarian MPC8248VRTMFA CAD Model

Description

The NXP MPC8248VRTMFA is a 32-bit PowerPC G2_LE core processor with a speed of 400MHz.

  • Core: One core
  • Bus Width: 32-bit
  • Case: 516-FPBGA case
  • RAM Controllers: DRAM and SDRAM
  • Ethernet: 10/100 Mbps (2)
  • USB: USB 2.0 (1)
  • Additional Interfaces: I2C, SCC, SMC, SPI, UART, and USART
  • Temperature Range: 0°C to 105°C (TA)
  • Category: Integrated Circuits
  • Status: Currently active
