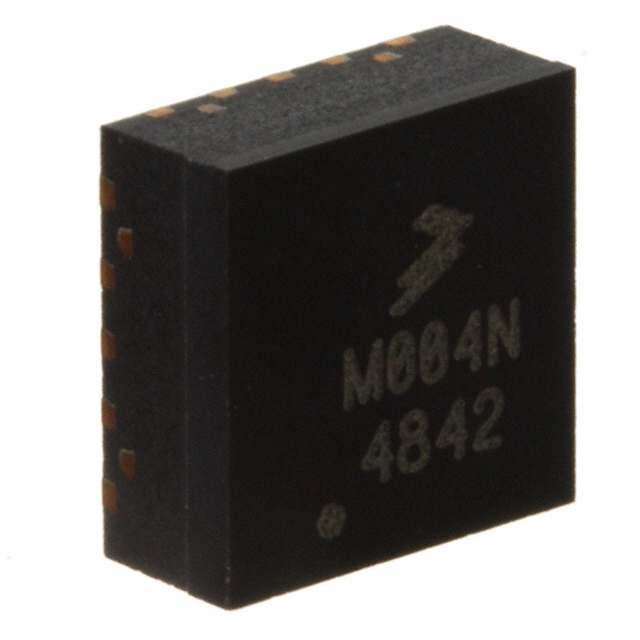

Same model may have multiple batches, images only for reference.
MMG3004NT1 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MMG3004NT1

Part No MMG3004NT1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC AMP RF GP 2200MHZ 5V 16-PQFN
Datasheet
MMG3004NT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Not For New Designs
Frequency 400MHz to 2.2GHz
P1dB 27dBm (501.2mW)
Gain 16dB
Noise Figure 3.4dB
RF Type Cellular, PCS, PHS, WLL
Supply Voltage - Operating 5V
Operating Supply Current 250mA
Test Frequency 2.14GHz
Case / Package 16-PWR QFN (5x5)
Win Source Part Number 120284-MMG3004NT1
Ultra Librarian 3D Model Ultra Librarian MMG3004NT1 CAD Model

Description

The NXP IC is a high-gain amplifier designed for RF/IF and RFID applications.

  • Test frequency: 2.14GHz
  • Frequency range: 400MHz to 2.2GHz
  • Gain: 16dB
  • Noise figure: 3.4dB
  • P1dB: 27dBm (501.2mW)
  • Family: MMG3004NT1
  • Status: Not for new designs
  • Description: The IC is suitable for applications such as cellular, PCS, PHS, WLL, and other RF/IF and RFID applications.
