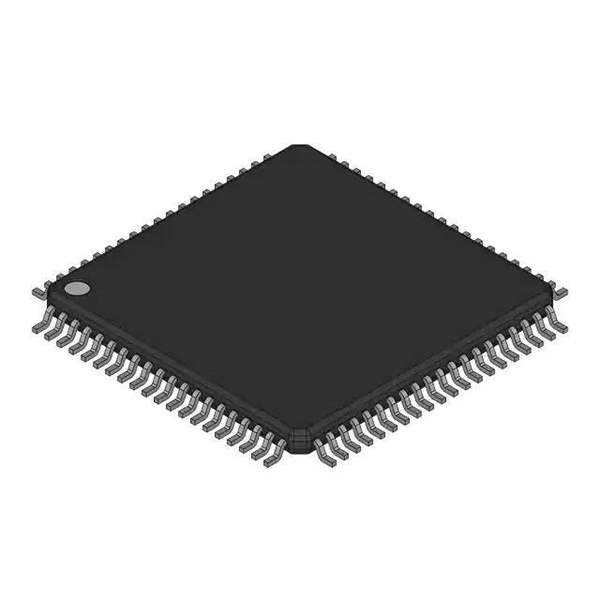

MC9S12DJ256BCFU Real Image
Same model may have multiple batches, images only for reference.

MC9S12DJ256BCFU

Part No MC9S12DJ256BCFU
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description 16-BIT, FLASH, CPU12 CPU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor - NXP
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor CPU12
Core Size 16-Bit
Speed 50MHz
Connectivity CANbus, I2C, SCI, SPI
Peripherals PWM, WDT
Number of I/O 59
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 12K x 8
Voltage - Supply (Vcc/Vdd) 2.35V ~ 5.25V
Data Converters A/D 8x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 80-QFP
Supplier Device Package 80-QFP (14x14)
Base Product Number MC9S12
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 225025-MC9S12DJ256BCFU
Ultra Librarian 3D Model Ultra Librarian MC9S12DJ256BCFU CAD Model

Description

The MC9S12DJ256BCFU is a 16-bit microcontroller designed for embedded applications.

  • Core Processor: CPU12
  • Speed: 50MHz
  • Package: Bulk
  • Standard Package: 1 piece
  • Connectivity: CANbus, I2C, SCI, and SPI
  • I/O Pins: 59
  • Program Memory Size: 256KB
  • Memory Type: FLASH
  • Peripherals: PWM and WDT
  • Temperature Range: -40°C to 85°C
  • ECCN Code: EAR99
  • Voltage: 3.35V to 5.25V
  • Status: Active
  • Manufacturer: Freescale Semiconductor - NXP
