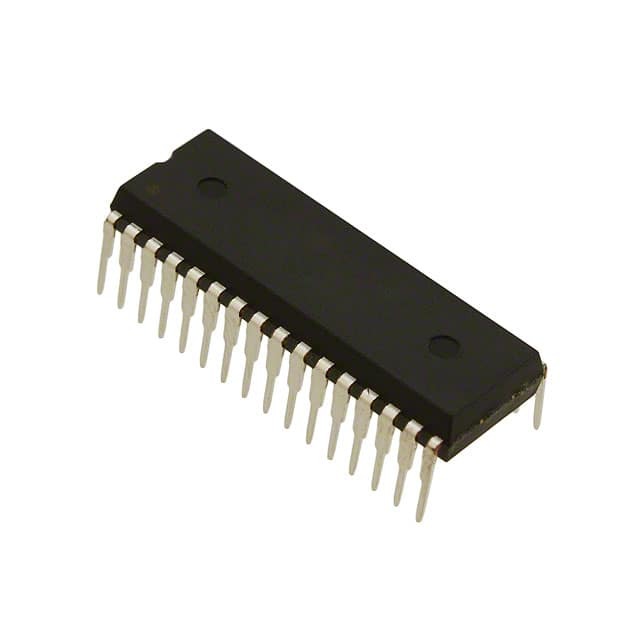

MC9S08SV16CBM Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MC9S08SV16CBM

Part No MC9S08SV16CBM
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 32SDIP / S08 series Microcontroller IC 8-Bit 40MHz 16KB (16K x 8) FLASH 32-SDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Freescale Semiconductor
Series S08
Package Tube
Product Status Obsolete
Core Processor S08
Core Size 8-Bit
Speed 40MHz
Connectivity I2C, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 30
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Supply Voltage - Operating 2.7V ~ 5.5V
Data Converters A/D 12x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 32-SDIP (0.400", 10.16mm)
Supplier Device Package 32-SDIP
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names FREFREMC9S08SV16CBM,2156-MC9S08SV16CBM-FR
Standard Package 17
Win Source Part Number 1228452-MC9S08SV16CBM
Ultra Librarian 3D Model Ultra Librarian MC9S08SV16CBM CAD Model

Description

The Freescale Semiconductor-NXP MC9S08SV16CBM is an 8-bit microcontroller that belongs to the S08 series.

  • Core Processor: S08
  • Speed: 40MHz
  • Package: Tube
  • Package Quantity: 17
  • I/O: 30
  • Program Memory Size: 16KB
  • Connectivity: I2C, LINbus, SCI, SPI
  • Peripherals: LVD, POR, PWM, WDT
  • Data Converters: A/D 12x10b
