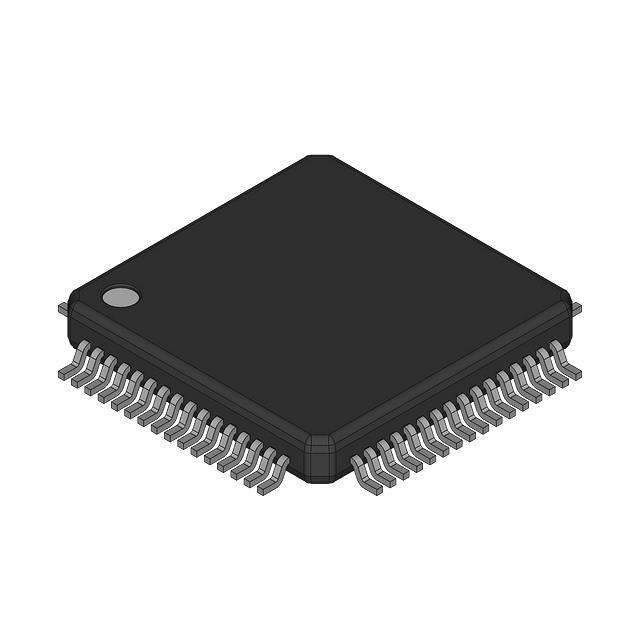

MC9S08DZ48ACLH Real Image
Same model may have multiple batches, images only for reference.

MC9S08DZ48ACLH

Part No MC9S08DZ48ACLH
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 48KB FLASH 64LQFP / S08 S08 Microcontroller IC 8-Bit 40MHz 48KB (48K x 8) FLASH 64-LQFP (10x10)
Datasheet
MC9S08DZ48ACLH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Manufacturer Freescale Semiconductor
Packaging Bulk
Core Processor S08
Core Size 8-Bit
Speed 40MHz
Connectivity CANbus, I2C, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 53
Program Memory Size 48KB (48K x 8)
Program Memory Type FLASH
EEPROM Size 1.5K x 8
RAM Size 3K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 24x12b
Oscillator Type External
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 64-LQFP
Supplier Device Package 64-LQFP (10x10)
Base Product Number MC9S08
ECCN 3A991A2
HTSUS 8542.31.0001
Other Part Number NXPNXPMC9S08DZ48ACLH,2156-MC9S08DZ48ACLH
Standard Package 1
Win Source Part Number 1318700-MC9S08DZ48ACLH
Ultra Librarian 3D Model Ultra Librarian MC9S08DZ48ACLH CAD Model

Description

The MC9S08DZ48ACLH is a microcontroller with a core processor of S08 and manufactured by Freescale Semiconductor.

  • Speed: 40MHz
  • Standard Package: 1
  • Mounting Type: Surface Mount
  • Connectivity: CANbus, I2C, LINbus, SCI, and SPI
  • Peripherals: LVD, POR, PWM, and WDT
  • Number of I/O: 53
  • Program Memory Type: FLASH
  • Program Memory Size: 48KB (48K x 8)
  • EEPROM Size: 1.5K x 8
  • RAM Size: 3K x 8
  • Data Converters: A/D 24x12b
  • Oscillator Type: External
  • Supplier Device Package: 64-LQFP (10x10)
  • Operating Temperature: -40°C ~ 85°C
