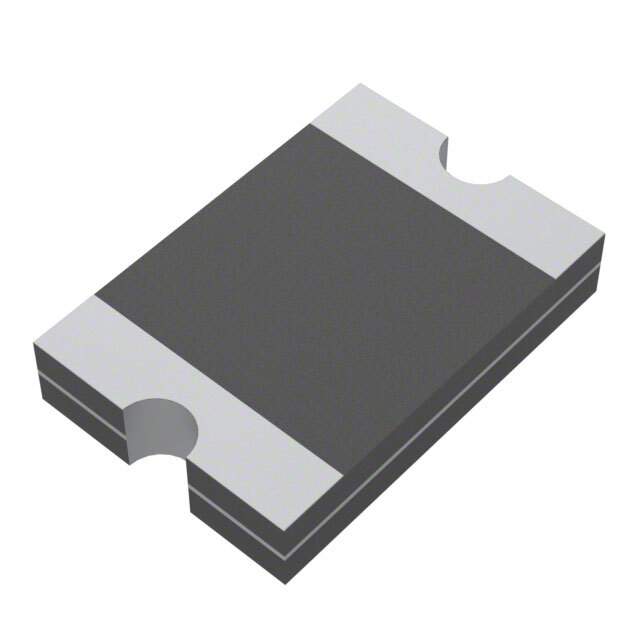

SMD1812B020TF-J

Name: SMD1812B020TF-J
Brand: Yageo
SKU: 1178940
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMD1812B020TF-J
Manufacturer	Yageo
Catalog	PTC Resettable Fuses
Description	GDT / Polymeric PTC Resettable Fuse 60V 200 mA Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet	SMD1812B020TF-J Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	YAGEO
Series	SMD1812
Package	Tape & Reel
Type	Polymeric
Voltage - Max	60V
Current - Max	40 A
Current - Hold (Ih) (Max)	200 mA
Current - Trip (It)	400 mA
Time to Trip	2 s
Resistance - Initial (Ri) (Min)	700 mOhms
Resistance - Post Trip (R1) (Max)	5 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	1812 (4532 Metric), Concave
Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max)	0.049" (1.25mm)
Approval Agency	cUL, TUV, UL
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	13-SMD1812B020TF-JTR,13-SMD1812B020TF-JCT,13-SMD1812B020TF-JDKR
Standard Package	1,500
Win Source Part Number	1178940-SMD1812B020TF-J
Ultra Librarian 3D Model	Ultra Librarian SMD1812B020TF-J CAD Model

Description

The YAGEO 1178940-SMD1812B020TF-J is a PTC resettable fuse with a polymeric type.

Voltage Rating: 60V
Maximum Current: 40 A
Mounting: SMD (SMT)
Current Hold (Ih) (Max): 200 mA
Current Trip (It): 400 mA
Time to Trip: 2 s
Resistance - Initial (Ri) (Min): 700 mOhms
Resistance - Post Trip (R1) (Max): 5 Ohms
Operating Temperature: -40°C to 85°C
Package: 1812 (4532 Metric), Concave
Package Type: Tape and Reel
