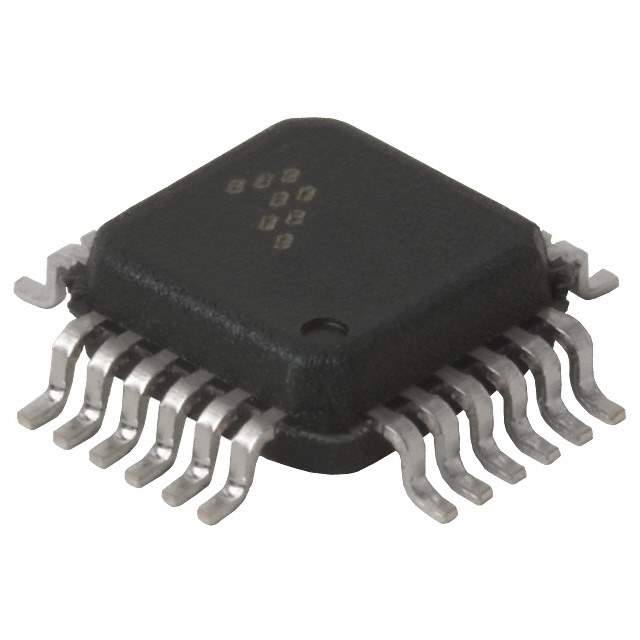

MC33592FTAE Real Image
Same model may have multiple batches, images only for reference.

MC33592FTAE

Part No MC33592FTAE
Manufacturer Freescale Semiconductor - NXP
Catalog RF Receivers
Description IC RF RECEIVER 315 434MHZ 24LQFP
Datasheet
MC33592FTAE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Frequency 315MHz, 434MHz
Sensitivity -105dBm
Data Rate (Max) 11 kBaud
Modulation or Protocol OOK
Applications General Data Transfer
Current - Receiving 5.7mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Supply Voltage - Operating 1.9 V to 3.6 V
Temperature Range - Operating -40°C to 85°C
Case / Package 24-LQFP (4x4)
Win Source Part Number 123602-MC33592FTAE
Ultra Librarian 3D Model Ultra Librarian MC33592FTAE CAD Model

Description

The NXP MC33592FTAE is a surface mount, low power, OOK modulated, 315MHz and 434MHz RF receiver.

  • Application: General data transfer
  • Sensitivity: -105dBm
  • Data Rate: Up to 11kBaud
  • Supply Voltage: 1.9V to 3.6V
  • Package: 24-LQFP (4x4)
  • Operating Temperature: -40°C to 85°C
  • Status: Obsolete (EOL)
