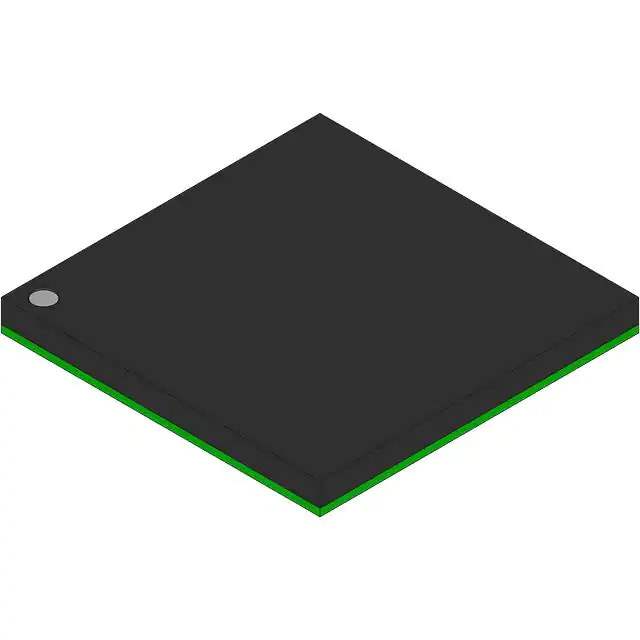

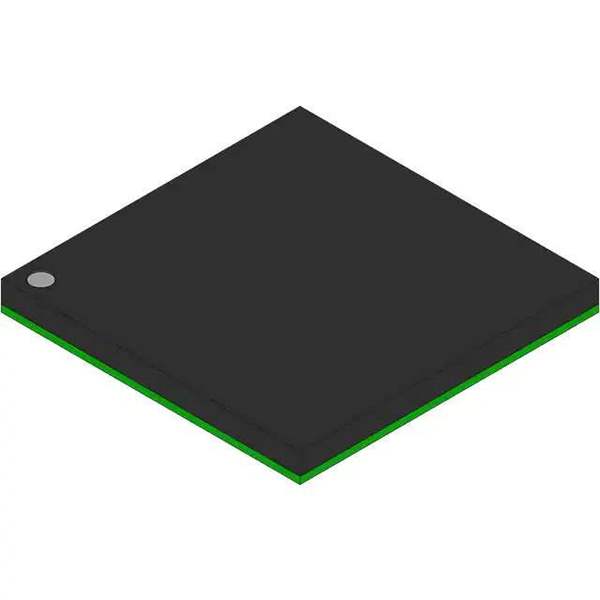

DSP56303VF100 Real Image
Same model may have multiple batches, images only for reference.

DSP56303VF100

Part No DSP56303VF100
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - DSP (Digital Signal Processors)
Description DSP, 24-EXT BIT, 100MHZ, CMOS, P
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - DSP (Digital Signal Processors)
Mfr Freescale Semiconductor - NXP
Series DSP563xx
Package Bulk
Product Status Active
Type DSP
Interface Host Interface, SSI, SCI
Clock Rate 100MHz
Non-Volatile Memory ROM (576B)
On-Chip RAM 24kB
Voltage - I/O 3.30V
Voltage - Core 3.30V
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 196-LBGA
Supplier Device Package 196-PBGA (15x15)
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 587225-DSP56303VF100
Ultra Librarian 3D Model Ultra Librarian DSP56303VF100 CAD Model

Description

The DSP56303VF100 is a digital signal processor (DSP) integrated circuit (IC) from the DSP563xx series manufactured by N/A.

  • Applications: Embedded applications that require high-performance signal processing capabilities
  • Clock Rate: 100MHz
  • Voltage Supply Range: 3.30V
  • Interfaces: Host interface, SSI (Synchronous Serial Interface), and SCI (Serial Communication Interface)
  • On-Chip Memory: 24kB of on-chip RAM and non-volatile memory of 576B
  • Package: 196-LBGA
  • Temperature Range: -40°C to 100°C
