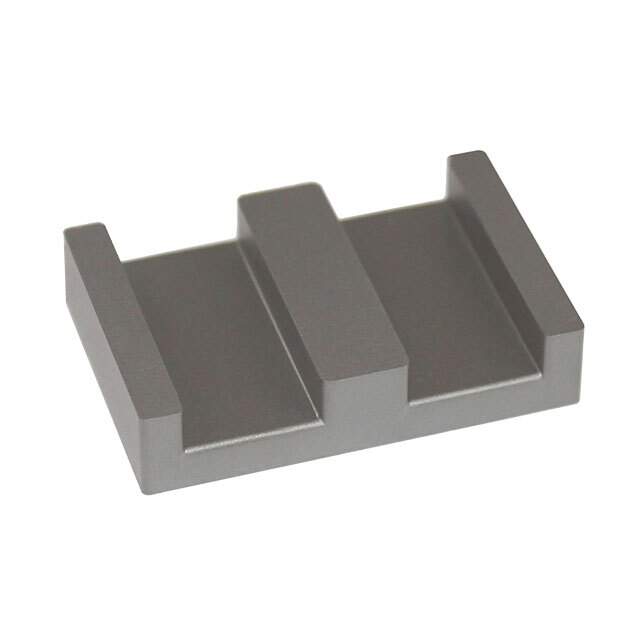

E14/3.5/5/R-3F36 Real Image
Same model may have multiple batches, images only for reference.

E14/3.5/5/R-3F36

Part No E14/3.5/5/R-3F36
Manufacturer Ferroxcube
Catalog Ferrite Cores
Description FERRITE CORE
Datasheet
E14/3.5/5/R-3F36 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Magnetics - Transformer, Inductor Components
Manufacturer Ferroxcube
Status Active
Core Type E
Material 3F36
Finish Uncoated
Case / Package E 14 x 3.5 x 5
Height 3.50mm
Length 14.00mm
Width 5.00mm
Win Source Part Number 1035724-E14/3.5/5/R-3F36
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,800
Ultra Librarian 3D Model Ultra Librarian E14/3.5/5/R-3F36 CAD Model

Description

The Ferroxcube E14/3.5/5/R-3F36 manufactured by Ferroxcube is a popular electronic component used in the electronic industry.

  • Length: 14.00mm
  • Height: 3.50mm
  • Material: 3F36
  • Core Type: E
  • Width: 5.00mm
  • Finish: Uncoated
  • Categories: Magnetics - Transformer, Inductor Components
  • Status: Active
  • Quantity per package: 1,800
