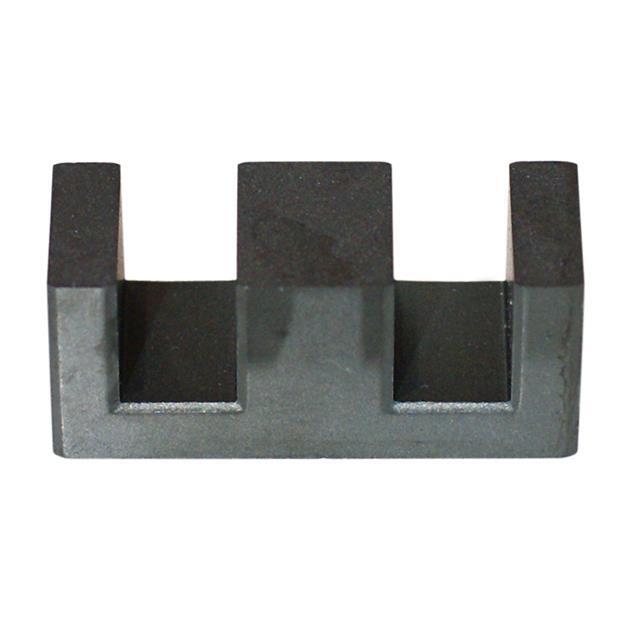

Same model may have multiple batches, images only for reference.

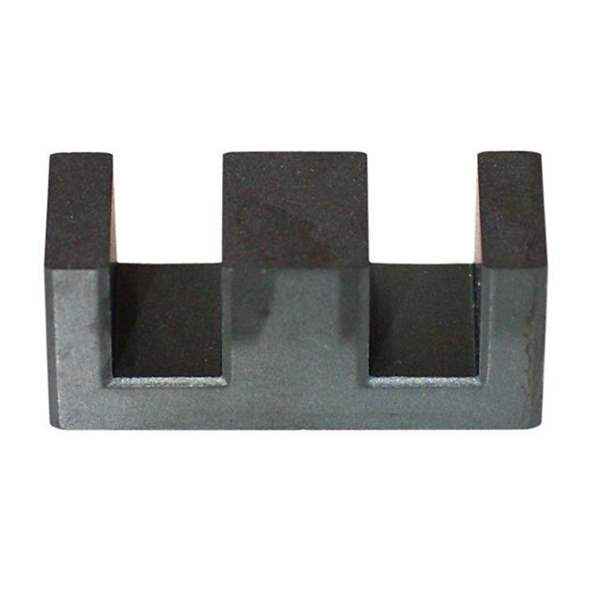

9478104002 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9478104002

Part No 9478104002
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE E 78 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 150.0
Effective Length (le) mm 46.3
Effective Area (Ae) mm2 30.9
Minimum Core Cross Section (Amin) mm2 30.0
Effective Magnetic Volume (Ve) mm3 1430.0
Finish Uncoated
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528144-9478104002
Ultra Librarian 3D Model Ultra Librarian 9478104002 CAD Model

Description

N
