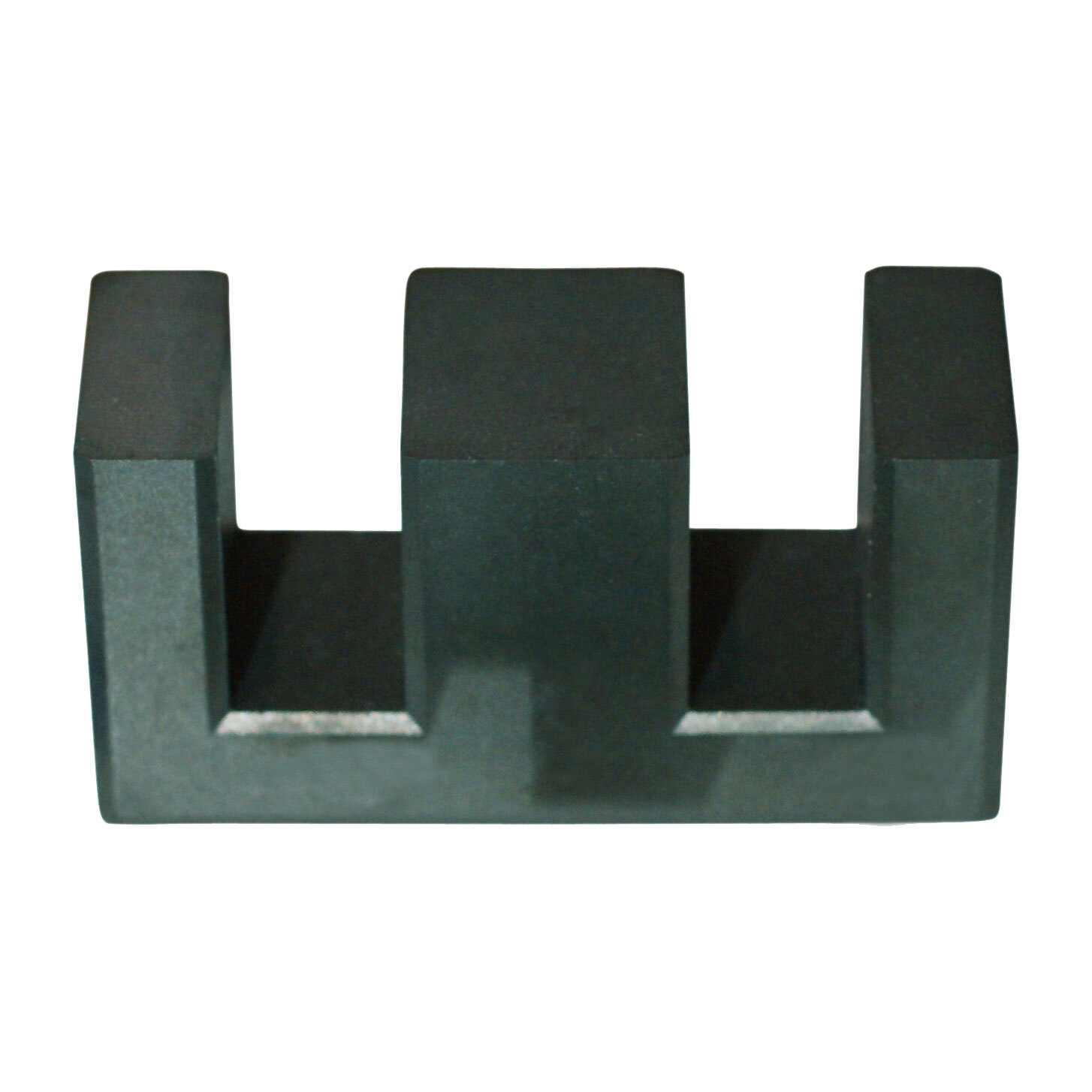

Same model may have multiple batches, images only for reference.
7878400721 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7878400721

Part No 7878400721
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE E 78 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 14.0
Effective Length (le) mm 70.0
Effective Area (Ae) mm2 518.0
Minimum Core Cross Section (Amin) mm2 515.0
Effective Magnetic Volume (Ve) mm3 36300.0
Finish Uncoated
Height 0.407" (10.34mm)
Length 2.520" (64.00mm)
Width 2.008\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528128-7878400721
Ultra Librarian 3D Model Ultra Librarian 7878400721 CAD Model
