9498206002 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9498206002

Part No 9498206002
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores

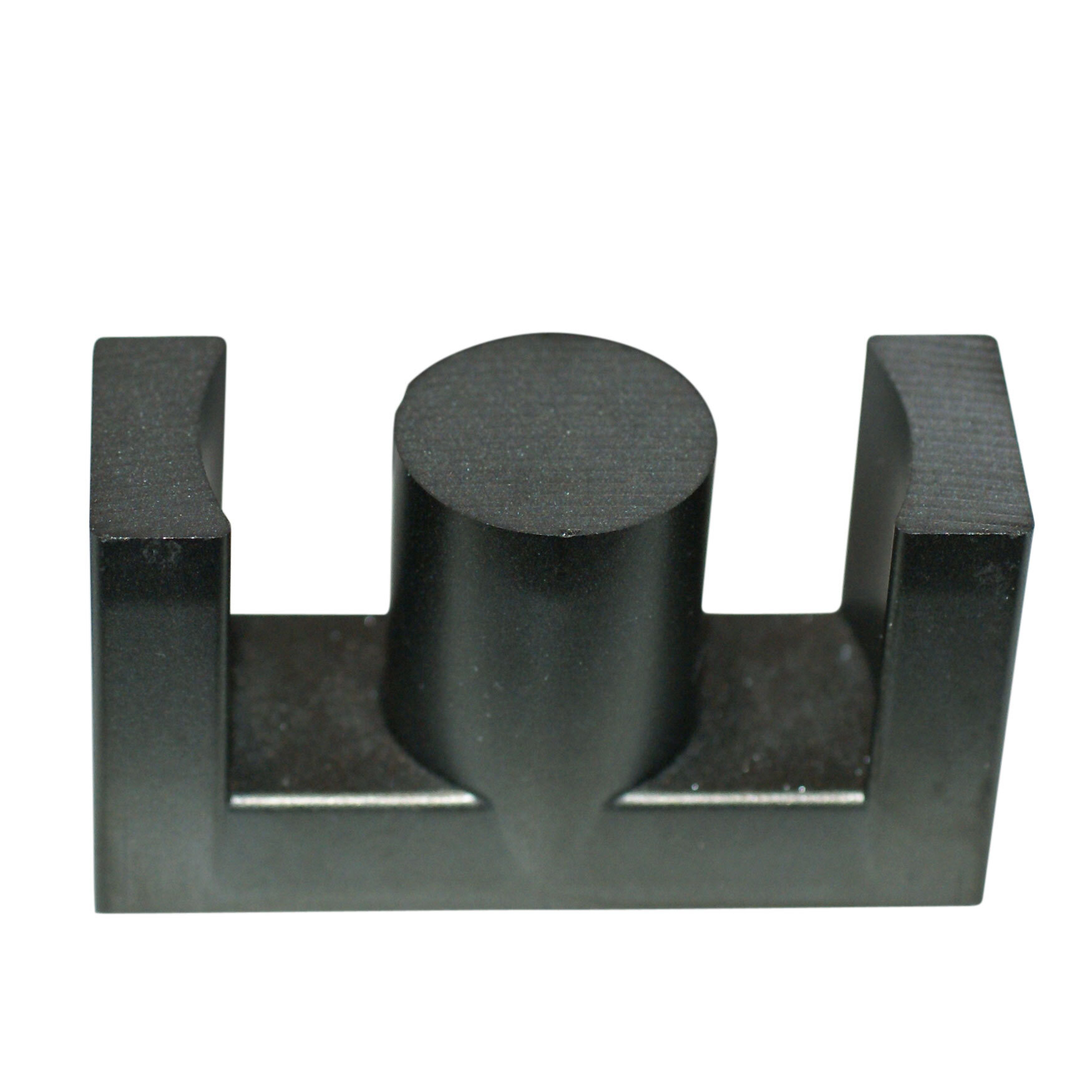

Description FERRITE CORE E SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2400
Core Factor (ΣI/A) mm⁻¹ 28.0
Effective Length (le) mm 62.1
Effective Area (Ae) mm2 221.0
Minimum Core Cross Section (Amin) mm2 215.0
Effective Magnetic Volume (Ve) mm3 13700.0
Finish Uncoated
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528158-9498206002
Ultra Librarian 3D Model Ultra Librarian 9498206002 CAD Model
