5695110821 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5695110821

Part No 5695110821
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE PS 95 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type PS
Material 95
Diameter 0.437" (11.10mm)
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 3000
Core Factor (ΣI/A) mm⁻¹ 95.0
Effective Length (le) mm 16.5
Effective Area (Ae) mm2 17.3
Effective Magnetic Volume (Ve) mm3 284.0
Finish Uncoated
Height 0.130" (3.30mm)
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1528081-5695110821
Ultra Librarian 3D Model Ultra Librarian 5695110821 CAD Model

Description

N

You May Also Be Interested in

Picture of B66389G1000X187
B66389G1000X187
EPCOS (TDK)
Uncoated N87 Ferrite Core E Type 1.417" (36.00mm) Length 0.453" (11.50mm) Width Diameter 0.709" (18.00mm) Height
Need more? Email Us
5978014001 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
5978014001
FAIR-RITE PRODUCTS

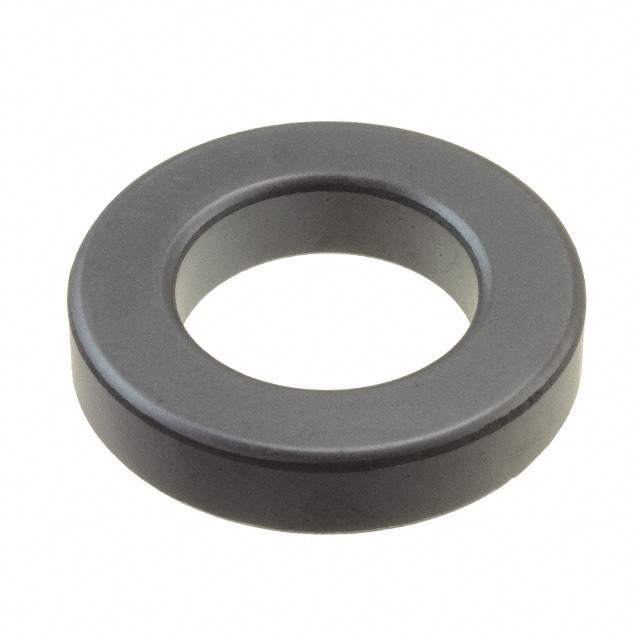

FERRITE CORE TOROID 78
