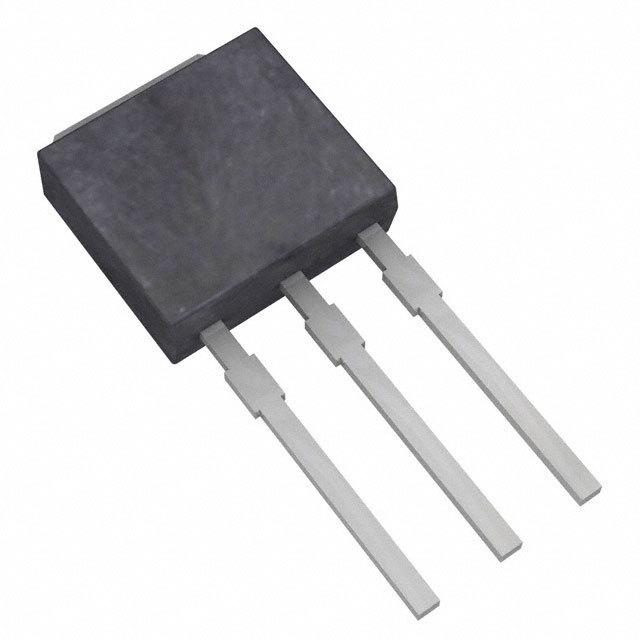

SGU20N40LTU Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

SGU20N40LTU

Part No SGU20N40LTU
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 400V 45W IPAK
Datasheet
SGU20N40LTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
IGBT Type Trench
VCEO Maximum Collector-Emitter Breakdown Voltage 400V
Pulsed Collector Current 150A
Collector-emitter saturation voltage(Max) 8V @ 4.5V, 150A
Maximum Power Dissipation 45W
Input Type Standard
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package I-Pak
Win Source Part Number 1095628-SGU20N40LTU
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SGU20N40LTU CAD Model

Description

This electronic component is a discrete semiconductor product from Fairchild/ON Semiconductor.

  • Win Source Part Number: 1095628-SGU20N40LTU
  • IGBT Type: Trench
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 400V
  • Packaging: Tube/Rail
  • Mounting: Through Hole
  • Maximum Power Dissipation: 45W
  • Pulsed Collector Current: 150A
  • Collector-Emitter Saturation Voltage(Max): 8V @ 4.5V, 150A
