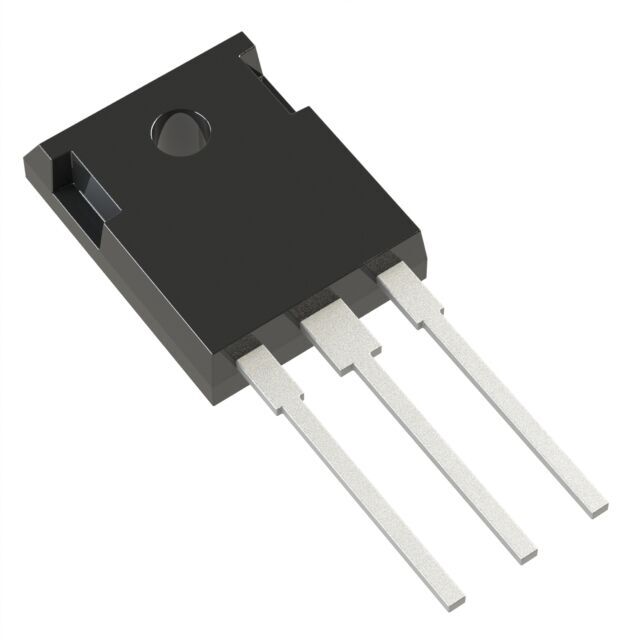

IXYH20N120C3

Part No IXYH20N120C3
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 1200V 40A TO-247
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsIGBTsSingle IGBTs
Manufacturer IXYS
Series GenX3?, XPT?
Packaging Tube
Part Status Active
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 40 A
Current - Collector Pulsed (Icm) 96 A
Vce(on) (Max) @ Vge, Ic 3.4V @ 15V, 20A
Power - Max 278 W
Switching Energy 1.3mJ (on), 500μJ (off)
Input Type Standard
Gate Charge 53 nC
Td (on/off) @ 25°C 20ns/90ns
Test Condition 600V, 20A, 10Ohm, 15V
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247 (IXTH)
Base Product Number IXYH20
Ultra Librarian 3D Model Ultra Librarian IXYH20N120C3 CAD Model
