Same model may have multiple batches, images only for reference.

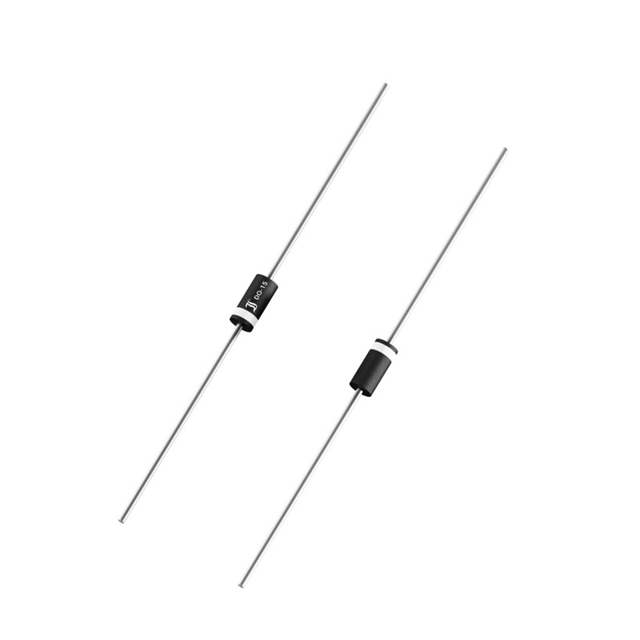

SB1100 Real Image
Same model may have multiple batches, images only for reference.

SB1100

Part No SB1100
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Schottky 100V 1A 2-Pin DO-41 T/R / DIODE SCHOTTKY 100V 1A DO204AL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Fairchild Semiconductor
Standard Package 1
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Single
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 850mV @ 1A
Speed Fast Recovery =< 500ns > 200mA (Io)
Current - Reverse Leakage @ Vr 500µA @ 100V
Capacitance @ Vr F 110pF @ 4V 1MHz
Mounting Style Through Hole
Package DO-204AL DO-41 Axial
Manufacturer Device Package DO-41
Operating Temperature - Junction -65°C ~ 125°C
Catalog Schottky Diode
Win Source Part Number 046733-SB1100
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management
Family Name SB1100
Introduction Date June 29, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SB1100 CAD Model

Description

The supply and demand status is sufficient.

  • Manufacturer: Fairchild Semiconductor
  • Win Source Part Number: 046733-SB1100
  • Product Category: Discrete semiconductor products
  • Product Type: Schottky Diode
  • Voltage - DC Reverse (Vr) (Max): 100V
  • Packaging: Reel
  • Mounting Style: Through Hole
  • Operating Temperature: -65°C to 125°C
  • Capacitance: 110pF @ 4V 1MHz
  • Estimated EOL date: 2026
