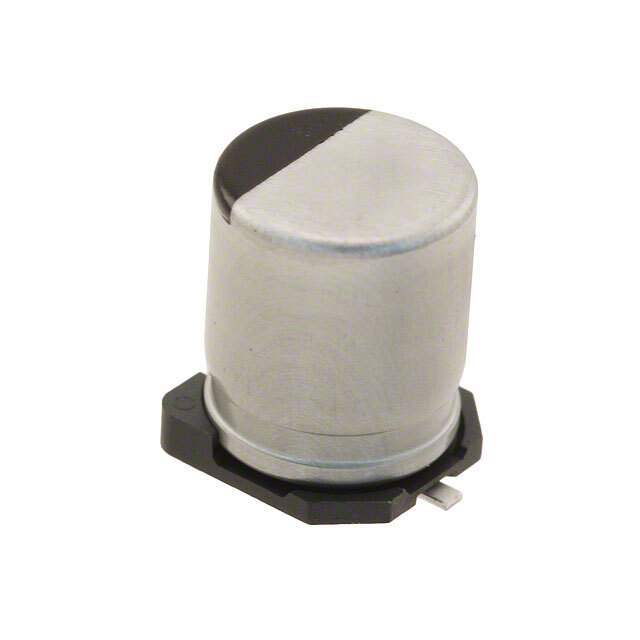

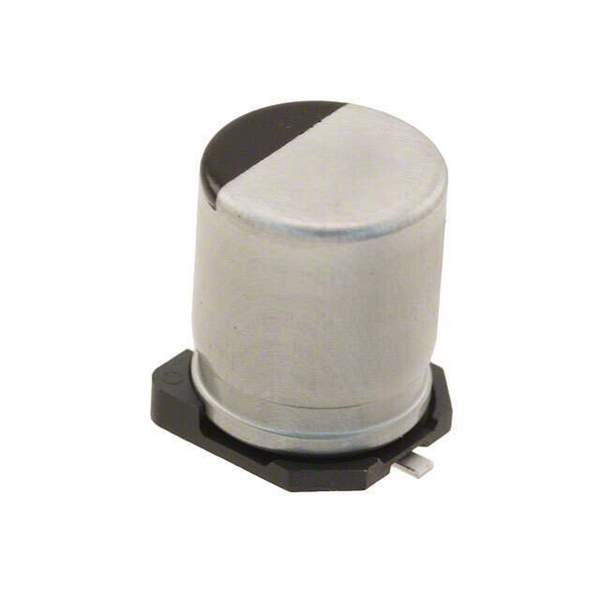

EEH-ZA1K220P Panasonic Electronic Components
Same model may have multiple batches, images only for reference.

EEH-ZA1K220P

Part No EEH-ZA1K220P
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM HYB 22UF 20% 80V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209843-EEH-ZA1K220P
Manufacturer Panasonic Electronic Components
Category Capacitors- Aluminum - Polymer Capacitors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type Hybrid
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 45mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Ultra Librarian 3D Model Ultra Librarian EEH-ZA1K220P CAD Model

Description

● Endurance : 10000 h at 105 ℃
● Low ESR and high ripple current (over 70% lower ESR and 100% higher ripple current than V-FP)
● High voltage (to 80 V)
● Characteristics dependencies in frequency and low temperature are as small as polymer type
● Vibration-proof product is available upon request (ø6.3, ø8, ø10)
● AEC-Q200 compliant
● RoHS compliant
