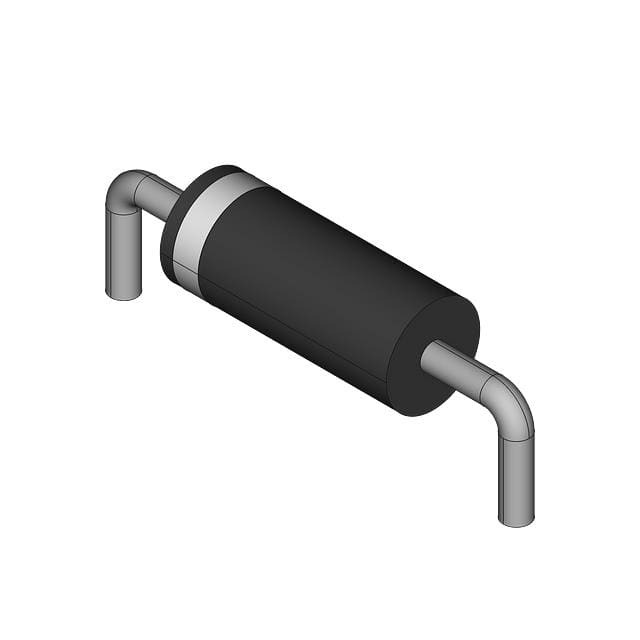

Same model may have multiple batches, images only for reference.
SA110A Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

SA110A

Part No SA110A
Manufacturer Fairchild/ON Semiconductor
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Fairchild Semiconductor
Series SA
Package Bulk
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 110V
Voltage - Breakdown (Min) 122V
Voltage - Clamping (Max) @ Ipp 177V
Current - Peak Pulse (10/1000µs) 2.9A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Other Names 2156-SA110A-FSTR,FAIFSCSA110A
Standard Package 4,000
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300939-SA110A
Ultra Librarian 3D Model Ultra Librarian SA110A CAD Model

Description

The Fairchild Semiconductor SA110A is a Zener diode with a reverse standoff voltage of 110V and a breakdown voltage of 122V.

  • Reverse Standoff Voltage: 110V
  • Breakdown Voltage: 122V
  • Clamping Voltage Maximum: 177V @ a peak pulse power of 500W
  • Channel: Unidirectional channel
  • Peak Pulse Current: 2.9A @ 10/1000µs
  • Mounting: Through-hole package
  • Application: Circuit protection applications
