Same model may have multiple batches, images only for reference.

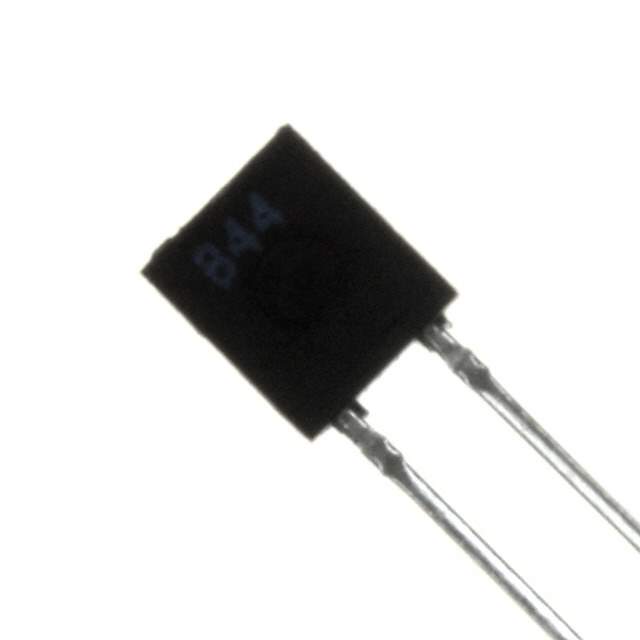

QSE113E3R0 Real Image
Same model may have multiple batches, images only for reference.

QSE113E3R0

Part No QSE113E3R0
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR IR 30V SIDELOOK
Datasheet
QSE113E3R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 50°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Side View
Temperature Range - Operating -40°C to 100°C (TA)
Dimension Radial
Win Source Part Number 1091095-QSE113E3R0
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian QSE113E3R0 CAD Model

Description

The QSE113E3R0 is a Side View phototransistor manufactured by Fairchild/ON Semiconductor.

  • Manufacturer: Fairchild/ON Semiconductor
  • Phototransistor Type: Side View
  • Maximum Current Collector: -
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 100mW
  • Current - Dark (Id) (Max): 100nA
  • Viewing Angle: 50°
  • Operating Temperature Range: -40°C to 100°C (TA)
  • Package Dimension: Radial
  • Wavelength: 880nm
  • Application: Sensors, Transducers
