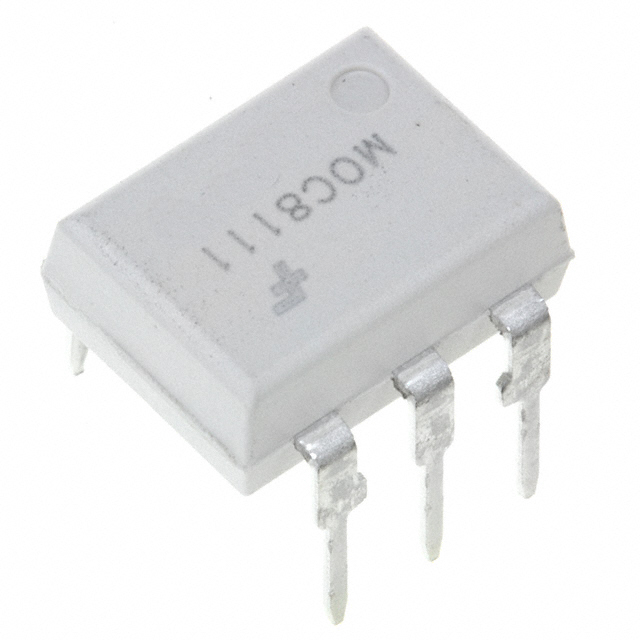

MOC8111M Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MOC8111M

Part No MOC8111M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 7.5KV TRANS 6-DIP
Datasheet
MOC8111M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 7500Vpk
Minimum DC Current Transfer Ratio 20% @ 10mA
Switching Turn-On and Turn-Off Time 3μs, 18μs
Rise and Fall Time 2μs, 11μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Forward Voltage 1.15V
Continuous forward current- Max 90mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 1078765-MOC8111M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MOC8111M CAD Model

Description

It falls under the categories of isolators and has no alternative parts (cross-reference).

  • Supply and Demand Status: Balanced
  • Manufacturer: Fairchild/ON Semiconductor
  • Switching Turn-On Time: 3μs
  • Switching Turn-Off Time: 18μs
  • Rise Time: 2μs
  • Fall Time: 11μs
  • Minimum DC Current Transfer Ratio: 20% @ 10mA
  • Maximum Output Voltage: 70V
  • Continuous Forward Current-Max: 90mA
  • Isolation Voltage: 7500Vpk
