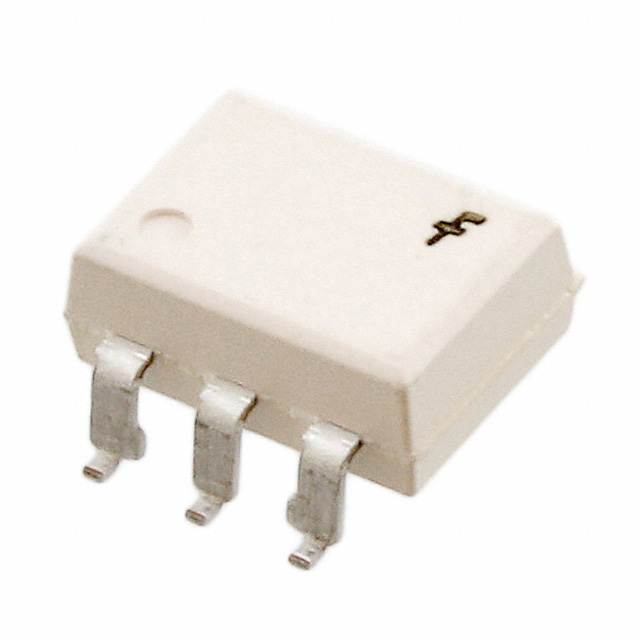

MOC3033SVM Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MOC3033SVM

Part No MOC3033SVM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4.17KV TRIAC 6SMD
Datasheet
MOC3033SVM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 4170Vrms
Voltage - Off State 250V
Static dV/dt (Min) 1kV/μs
Current - LED Trigger (Ift) (Max) 5mA
Current - Hold (Ih) 400μA (Typ)
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals IEC/EN/DIN, UL
Win Source Part Number 1078670-MOC3033SVM
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian MOC3033SVM CAD Model

Description

The MOC3033SVM is a triac output optocoupler from Fairchild/ON Semiconductor that is approved by IEC/EN/DIN and UL.

  • Forward Voltage: 1.25V
  • Off-State Voltage: 250V
  • Isolation Voltage: 4170Vrms
  • Hold Current: 400μA
  • Zero-Crossing Circuit: yes
  • Static dV/dt: 1kV/μs
  • Supply and Demand Status: balanced
  • Package Quantity: 1k pcs
