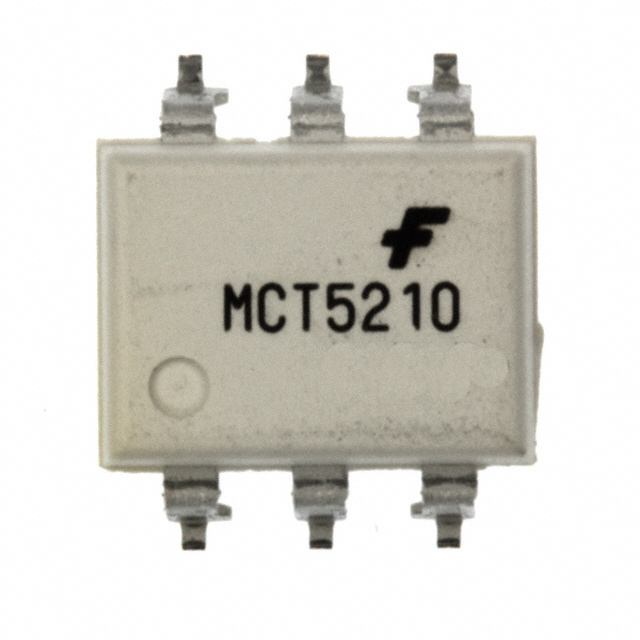

MCT5210SM Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MCT5210SM

Part No MCT5210SM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD Bag / OPTOISO 4.17KV TRANS W/BASE 6SMD
Datasheet
MCT5210SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Number of Channels 1
Voltage - Isolation 4170Vrms
Current Transfer Ratio (Minimum) 70% @ 3mA
Turn On / Turn Off Time (Typ) 10μs, 400ns
Input Type DC
Output Type Transistor with Base
Output Voltage MAX 30V
Output Current per Channel 150mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 400mV
Operating Temperature Range -40°C ~ 100°C
Mounting SMD
Package 6-SMD, Gull Wing
Manufacturer Package 6-SMD
Win Source Part Number 788359-MCT5210SM
Popularity Medium
Supply and Demand Status Limited
Family Name MCT5210M
Introduction Date November 01, 2007
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MCT5210SM CAD Model

Description

The MCT5210SM from Fairchild/ON Semiconductor is an isolator.

  • Package: 6-SMD
  • Mounting Style: Gull Wing
  • Operating Temperature: -40°C to 100°C
  • Output Type: Transistor with Base
  • Input Type: DC
  • Voltage Forward (Vf): 1.25V
  • Voltage Isolation: 4170Vrms
  • Turn On/Off Time: 10μs, 400ns
  • Output Voltage (MAX): 30V
  • Output Current per Channel: 150mA
  • Current Transfer Ratio: 70% @ 3mA
  • Maximum Vce Saturation: 400mV
  • Estimated EOL Date: 2028
