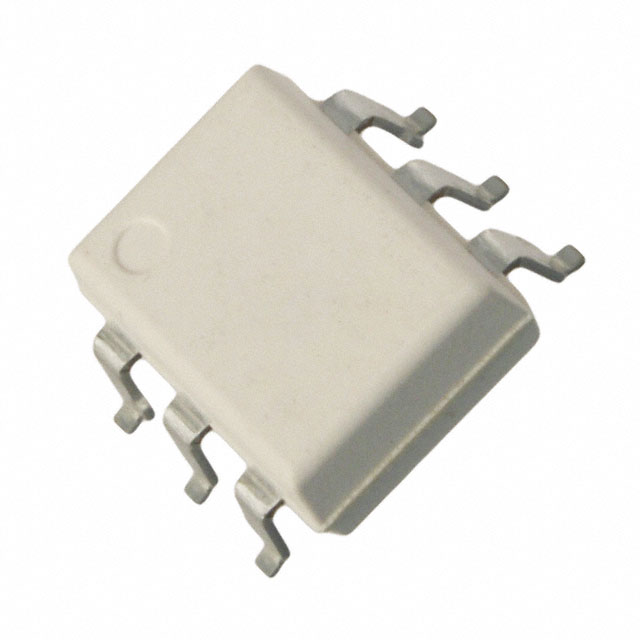

MCT5201SR2M Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MCT5201SR2M

Part No MCT5201SR2M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 7.5KV TRANS W/BASE 6SMD
Datasheet
MCT5201SR2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 7500Vpk
Minimum DC Current Transfer Ratio 120% @ 5mA
Rise and Fall Time 2.5μs, 16μs
Input Type DC
Maximum Output Voltage 30V
Channel Output Current 150mA
Forward Voltage 1.25V
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 1075605-MCT5201SR2M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MCT5201SR2M CAD Model

Description

The MCT5201SR2M is an electronic component that falls under the category of isolators.

  • Manufacturer: Fairchild/ON Semiconductor
  • Win Source Part Number: 1075605
  • Package: Reel
  • Mounting Type: SMD (SMT)
  • Forward Voltage: 1.25V
  • Input Type: DC
  • Channels: 1
  • Vce Saturation (Max): 400mV
  • Isolation Voltage: 7500Vpk
  • Status: Obsolete (EOL)
  • Temperature Range: -40°C to 100°C
  • Case/Package: 6-SMD
  • DC Current Transfer Ratio (Min): 120% @ 5mA
  • Rise Time: 2.5μs
  • Fall Time: 16μs
  • Output Voltage (Max): 30V
  • Channel Output Current: 150mA
  • Continuous Forward Current: 50mA
  • Supply and Demand Status: balanced
