Same model may have multiple batches, images only for reference.

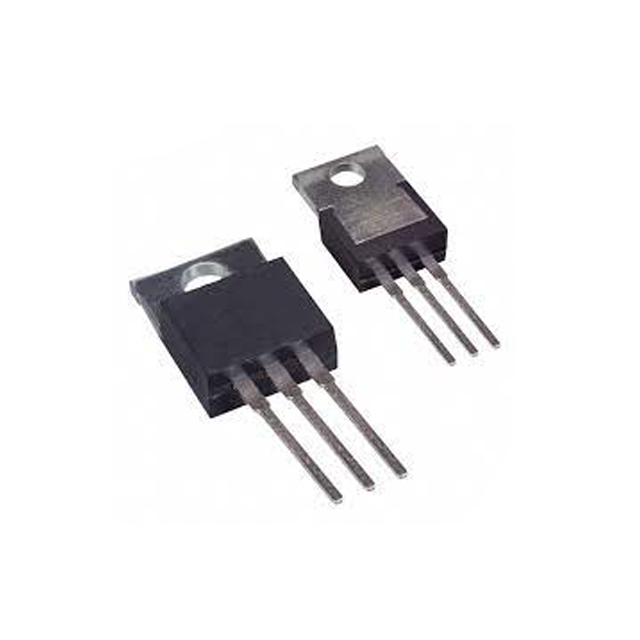

MBR2545CT Real Image
Same model may have multiple batches, images only for reference.

MBR2545CT

Part No MBR2545CT
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 45V TO220AB
Datasheet
MBR2545CT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 620mV @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 200μA @ 45V
Operating Temperature - Junction -65°C to 175°C
Mounting Through Hole
Case / Package TO-220AB
Win Source Part Number 074287-MBR2545CT
Ultra Librarian 3D Model Ultra Librarian MBR2545CT CAD Model

Description

The MBR2545CT is a Schottky diode manufactured by ON Semiconductor. It has a voltage - DC reverse (Vr) (Max) of 45V and voltage - forward (Vf) (Max) @ If of 620mV @ 15A. The diode configuration is 1 Pair Common Cathode and the current - average rectified (Io) (per Diode) is 15A. It has a fast recovery speed (frequency) of 200mA (Io). The MBR2545CT comes in a TO-220AB case / package and has active status.
