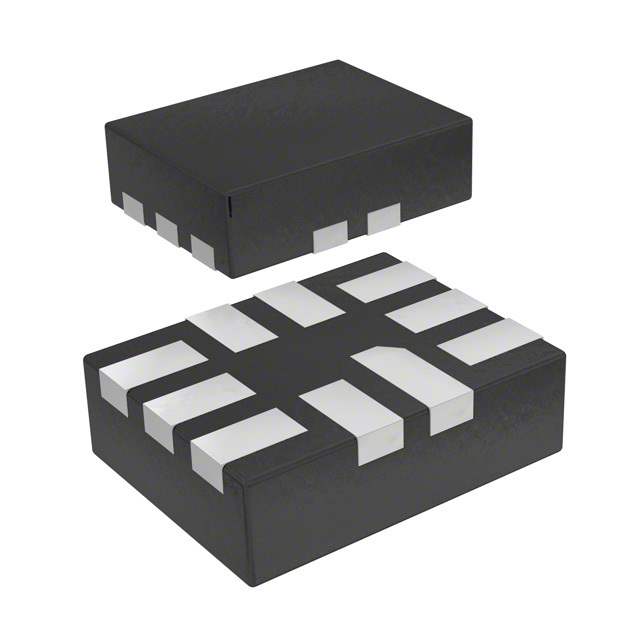

FSA2259UMX Real Image
Same model may have multiple batches, images only for reference.

FSA2259UMX

Part No FSA2259UMX
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL SPDT 10UMLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 500 mOhm (Typ)
Channel-to-Channel Matching (ΔRon) 80 mOhm
Single Supply Voltage (V+) 1.65 V to 4.4 V
Max Switch Time (Ton,Toff) 55ns, 30ns
-3db Bandwidth 50MHz
Charge Injection 25pC
Channel Capacitance(CS off, CD off) 30pF
Max Leakage Current (IS off) 10nA
Crosstalk -100dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-UMLP (1.8x1.4)
Win Source Part Number 016491-FSA2259UMX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FSA2259UMX CAD Model

Description

The FSA2259UMX is a 2-circuit SPDT analog switch manufactured by Fairchild/ON Semiconductor.

  • -3db Bandwidth: 50MHz
  • Charge Injection: 25pC
  • Crosstalk: -100dB at 100kHz
  • Channel-to-Channel Matching (ΔRon): 80 mOhm
  • Single Supply Voltage: 1.65V to 4.4V
  • Max On Resistance: 500 mOhm (Typ)
  • Package: 10-UMLP (1.8x1.4)
  • Max Switch Time (Ton,Toff): 55ns, 30ns
  • Channel Capacitance (CS off, CD off): 30pF
  • Max Leakage Current (IS off): 10nA
  • Supply/Demand: Balanced
  • Quantity per Package: 5k pcs
