Same model may have multiple batches, images only for reference.

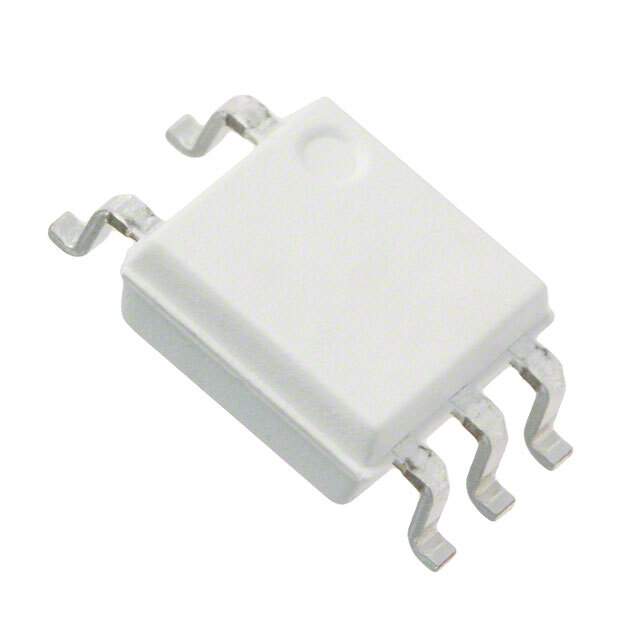

FODM611 Real Image
Same model may have multiple batches, images only for reference.

FODM611

Part No FODM611
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPEN COLL 5MFP
Datasheet
FODM611 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Channel Output Current 50mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 100ns, 100ns
Rise and Fall Time 20ns, 10ns
Forward Voltage 1.45V
Continuous forward current- Max 50mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 5-Mini-Flat
Win Source Part Number 1039450-FODM611
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FODM611 CAD Model

Description

The Fairchild/ON Semiconductor FODM611 is an isolator designed for use in a range of applications.

  • Isolation Voltage: 3750Vrms
  • Common Mode Transient Immunity (Min): 20kV/μs
  • Data Rate: 10Mbps
  • Forward Voltage: 1.45V
  • Rise Time: 20ns
  • Fall Time: 10ns
  • Channel Output Current: 50mA
  • Continuous Forward Current: 50mA
  • Package: SMD 5-mini-flat
  • Operating Temperature Range: -40°C to 85°C
  • Popularity: medium popularity rating
  • Supply and Demand Status: sufficient
