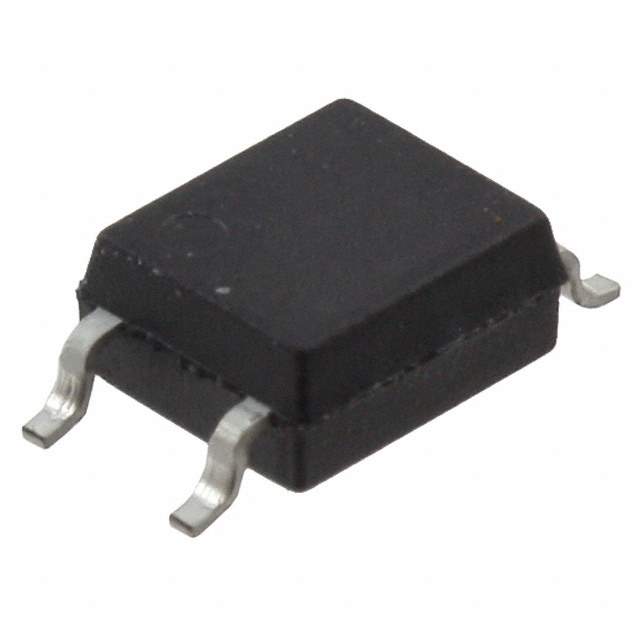

The FODM3022R2V_NF098 is a triac output optoisolator manufactured by Fairchild/ON Semiconductor. This device integrates an infrared emitting diode (IRED) and a triac driver, offering electrical isolation between the input control circuit and the output AC load. The 'R2V' designation often indicates specific packaging or performance characteristics tailored to particular applications.

Applications:

• Solid-state relays (SSRs): Replacement of electromechanical relays, offering faster switching speeds, longer lifespan, and noise-free operation.
• Industrial control systems: Isolation of AC loads such as motors, heaters, and solenoids from sensitive control circuitry.
• Lighting control: Dimming and switching of AC-powered lighting systems.
• Motor control: Control of small AC motors in appliances and industrial equipment.
• Solenoid and valve control: Activating and deactivating solenoids and valves in various automated systems.

Features:

• High isolation voltage: Provides a high degree of electrical isolation between input and output, enhancing safety and preventing ground loops.
• Triac output: Enables direct control of AC loads.
• Low input current: Requires a small input current to trigger the triac, reducing power consumption and simplifying interface requirements.
• Zero-crossing detection: Some versions may include zero-crossing detection circuitry to minimize switching noise and inrush current.
• Compact package: Suitable for high-density circuit board layouts.

Benefits:

• Enhanced safety: Galvanic isolation protects control circuitry from high-voltage AC loads.
• Improved reliability: Solid-state construction eliminates mechanical wear and tear, resulting in a longer lifespan compared to electromechanical relays.
• Reduced noise: Eliminates contact bounce and arcing, minimizing electrical noise and interference.
• Faster switching speeds: Offers significantly faster switching speeds compared to electromechanical relays.
• Simplified control: Direct interface to AC loads simplifies circuit design.

Additional Details:
